SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts

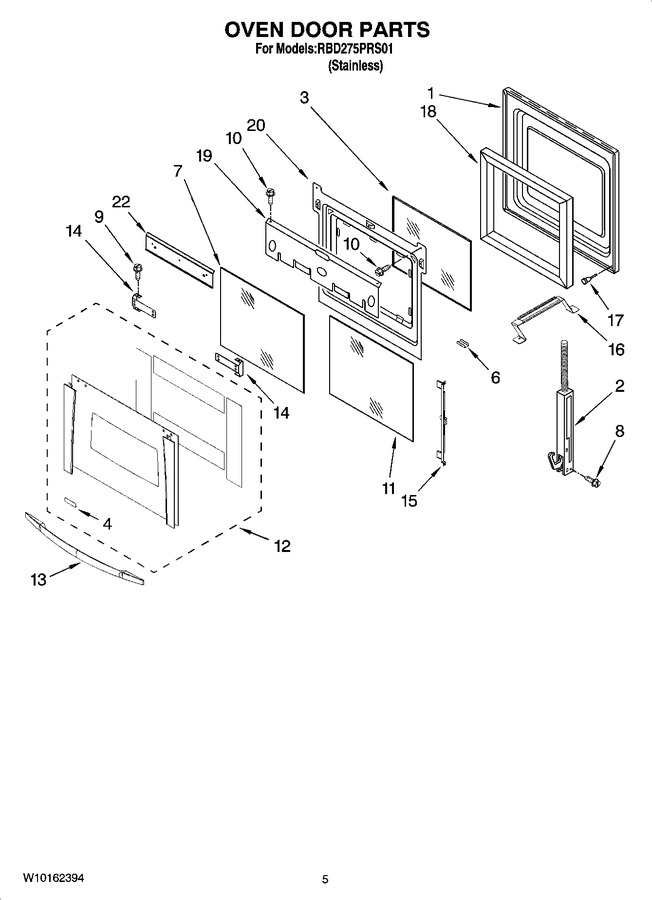

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Control Panel Parts


06 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Panel, Door				$ 128.78
2	9760565		Hinge, Door (right)				$ 33.78
2	9760566		Hinge, Door (left)		Appelez-nous	-
3	9759224		Glass, Inner Door				$ 81.28
4	8303811		Nameplate				$ 29.09
6	4451432		Retainer, Glass Clip		Appelez-nous	-
7	WP4449253		Glass, Inner Door   (Replaces: 4449253)				$ 151.75
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
9	W10276642		Screw   (Replaces: 4451040)				$ 5.77
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
11	9759228		Glass, Inner Door				$ 87.91
12	W10151082		Assembly, Door Glass (upper)		Appelez-nous	-
12	8303313		Assembly, Door Glass (lower)		Appelez-nous	-
13	8302810		Door Handle		Appelez-nous	-
14	W10136472		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 168.75
16	9759230		Bracket (3rdglass)				$ 36.30
17	4448520		Bumper, Door				$ 20.03
18	4451721		Insulation, Door				$ 37.62
19	4457102		Shield, Heat Upper				$ 31.70
20	4457131		Retainer, Glass				$ 31.95
22	4457113		Shield, Heat Lower				$ 33.29

    View Diagram in Separate Window       Print Part List
