Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21

35 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

203 M0753003 Nut, Sleeve Appelez-nous -
314 D7788914 Assy,mc Back Appelez-nous -
324 M0201216 Screw - Sm Appelez-nous -
381 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

382 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

863 A1055101 Spring, Antikink Appelez-nous -
873 A1055105 Spring, Anti Kink Appelez-nous -
906 10178405 Cover, O.c.back Appelez-nous -
916 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

926 5145-E No.8 Ab X 1/2`` Crow Foot Hd Scr Appelez-nous -
971 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1113 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

1133 D7827204 Valve, Water (220/240 Vac, 50 Special Order $ 113.44

1213 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1221 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

1263 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1291 M0108001 Clamp, Tube Appelez-nous -
1303 10496302 Brkt, Water Valve Appelez-nous -
1311 10178505 Cover - Wire Appelez-nous -
1604 M0108001 Clamp, Tube Appelez-nous -
2051 M0104102 Clip, Cord Special Order $ 8.10

2061 A3189336 Gasket, Foam Appelez-nous -
2071 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

4025 12362301 Harness, Cabinet Appelez-nous -
4782 B5794201 Clamp Appelez-nous -
5914 M0227217 Screw, Sm Appelez-nous -
7012 12356404 Cord, Power (106`` Export) Appelez-nous -
7022 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

7042 10547002 Clip, Drier Appelez-nous -
7142 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

7151 A4554813 Snap Bushing Appelez-nous -
7211 Y10203701 Strain Relief Appelez-nous -
7283 M0253504 Screw Appelez-nous -
7342 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

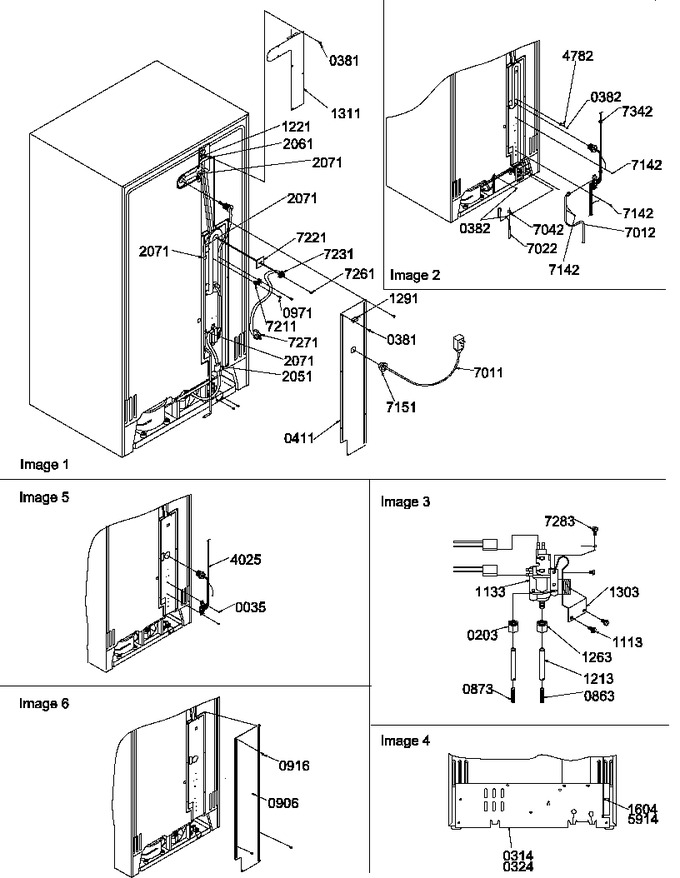

Diagram for SXD520TW (BOM: P1313701W W)
