Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 M0213129 Screw Appelez-nous -
12 10809520 Shelf Full Glide Appelez-nous -
13 10968801 Seal-crisp Front Appelez-nous -
14 10968801 Seal-crisp Front Appelez-nous -
21 10809524 Shelf, Full Glide Appelez-nous -
22 10875101 Stop, Shelf Appelez-nous -
23 10882701 Band, Crisper Appelez-nous -
24 10882702 Band-crisper Appelez-nous -
25 M0117303 Clip, Grille Special Order $ 5.65

33 10852501 Slide, Crisper/deli Appelez-nous -
34 10852501 Slide, Crisper/deli Appelez-nous -
44 Y10370065 Glass-shelf Appelez-nous -
63 10782901 Frame,crisper Appelez-nous -
64 10783001 Frame-crisper Appelez-nous -
74 12113003 Trim-crisper Fr Appelez-nous -
81 10783702 Frame, Deli Appelez-nous -
83 10481001 Roller, Pan Special Order $ 10.99

84 10481001 Roller, Pan Special Order $ 10.99

91 10809915 Rail, L Blank Side Appelez-nous -
93 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

94 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

101 10809916 Rail, R Blank Side Appelez-nous -
131 10784101 Pan,deli Appelez-nous -
141 10481001 Roller, Pan Special Order $ 10.99

151 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

435 10870801 Shelf, Ice Cream Appelez-nous -
455 12321807 Assy, Toe Grille (white) Appelez-nous -
825 10986105 Facade-white Appelez-nous -
835 M0219614 Screw K Appelez-nous -
885 12036401 Cap-switch Wh Appelez-nous -
3505 10984607 Insert, W Facade Appelez-nous -
5005 10504101 Chute, Ice Appelez-nous -
5015 12044501 Gasket-ice Chute Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

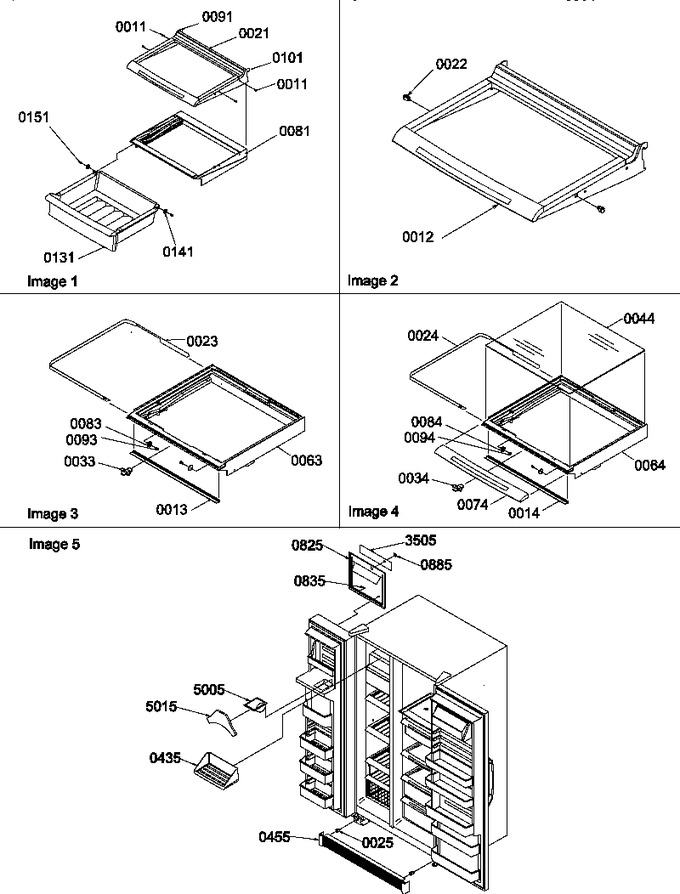

Diagram for SXD520TW (BOM: P1313701W W)
