SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts

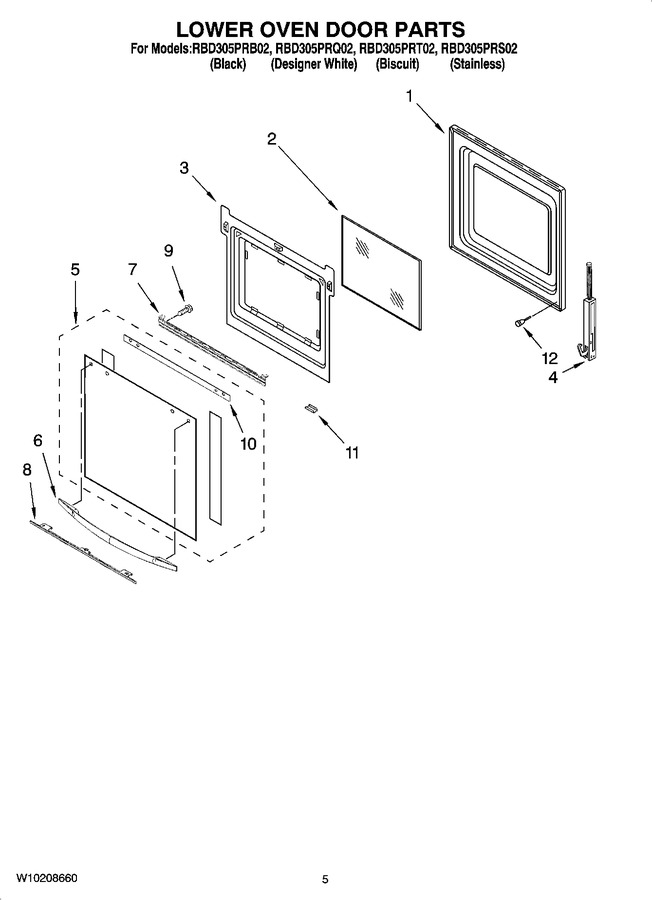

03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Liner, Door   (Replaces: 8303700)				$ 370.46
2	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
3	9759743		Retainer, Glass		Appelez-nous	-
4	9760568		Hinge, Door (ss Model Only) (left)		Appelez-nous	-
4	9760566		Hinge, Door (left)		Appelez-nous	-
4	9760567		Hinge, Door (ss Model Only) (right)		Appelez-nous	-
4	9760565		Hinge, Door (right)				$ 33.78
5	8303314		Assembly, Door Glass (stainless)				$ 194.13
5	8303330		Assembly, Door Glass (black)		Appelez-nous	-
5	8303339		Assembly, Door Glass (white)		Appelez-nous	-
5	8303342		Assembly, Door Glass (biscuit)		Appelez-nous	-
6	8302813		Door Handle (black)				$ 76.76
6	8302815		Door Handle (biscuit)		Appelez-nous	-
6	8302814		Door Handle (white)				$ 96.22
7	W10136473		Bracket, Handle		Appelez-nous	-
8	8303389BT		Retainer, Door (biscuit)		Appelez-nous	-
8	8303389WH		Retainer, Door (white)		Appelez-nous	-
8	8303389BL		Retainer, Door (black)		Appelez-nous	-
9	W10276642		Screw   (Replaces: 4451040)				$ 6.41
10	8303878		Seal - Door		Appelez-nous	-
11	4451432		Retainer, Clip		Appelez-nous	-
12	4448520		Bumper, Door				$ 22.25

    View Diagram in Separate Window       Print Part List
