Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP9759413 Liner, Door   (Replaces: 8303700) Special Order $ 370.46

2 9760573 Hinge, Door (ss Model Only) (right) Special Order $ 48.80

2 WP9760574 Hinge, Door (ss Model Only) (left)   (Replaces: 9760574) In-Stock Immediately $ 67.07

2 WP9760572 Hinge, Door (left)   (Replaces: 9760572) Special Order $ 111.96

2 WP9760571 Hinge, Door (right)   (Replaces: 9760571) In-Stock Immediately $ 114.51

3 WP4449259 Glass, Inner   (Replaces: 4449259) Special Order $ 213.34

4 WP4451722 Insulation, Door   (Replaces: 4451722) Special Order $ 189.77

5 WP4457132 Retainer, Glass   (Replaces: 4457132) Special Order $ 320.99

6 4448520 Bumper, Door Special Order $ 22.25

7 WP9759225 Glass, Inner   (Replaces: 9759225) In-Stock Immediately $ 194.20

11 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 8.18

12 8303314 Assembly, Door Glass (stainless) Special Order $ 194.13

12 8303342 Assembly, Door Glass (biscuit) Appelez-nous -
12 8303339 Assembly, Door Glass (white) Appelez-nous -
12 8303330 Assembly, Door Glass (black) Appelez-nous -
13 8302813 Door Handle (black) Special Order $ 76.76

13 8302814 Door Handle (white) Special Order $ 96.22

13 8302815 Door Handle (biscuit) Appelez-nous -
14 W10136473 Bracket, Handle Appelez-nous -
15 WP9759229 Bracket (2nd Glass)   (Replaces: 9759229) Special Order $ 187.50

16 9759230 Bracket (3rdglass) Special Order $ 36.30

17 8303811 Nameplate Special Order $ 29.09

18 8303389WH Retainer, Door (white) Appelez-nous -
18 8303389BT Retainer, Door (biscuit) Appelez-nous -
18 8303389BL Retainer, Door (black) Appelez-nous -
19 4457104 Shield, Heat   (Replaces: 4457103) Special Order $ 39.22

20 W10276642 Screw   (Replaces: 4451040) Special Order $ 6.41

21 8303878 Seal - Door Appelez-nous -
22 4457114 Shield, Heat-bottom Special Order $ 217.79

23 4451432 Retainer, Clip Appelez-nous -
24 9759228 Glass, Inner Special Order $ 87.91

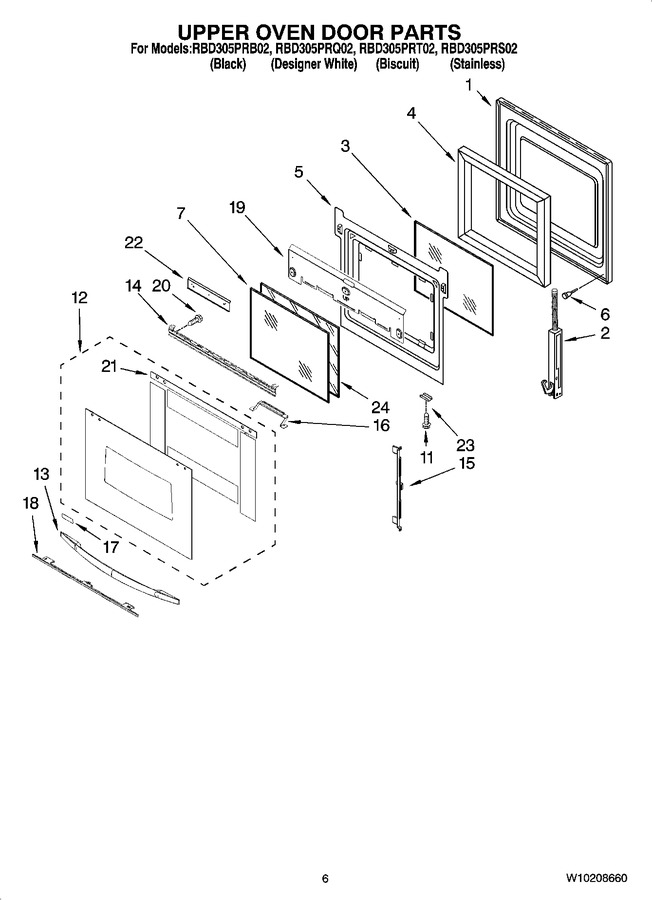

    View Diagram in Separate Window     Print Icon   Print Part List
