Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3012532 Tubing Plastic Appelez-nous -
2 B8389001 Shim, Top Hinge Appelez-nous -
3 10126501 Insulation, Hinge Cover Appelez-nous -
4 10126601 Foil, Hinge Cover V/a Appelez-nous -
5 10185101 Top Hinge-e Ct Appelez-nous -
6 10126402 Cover Hinge Black Appelez-nous -
6 10126401 Hinge Cover - Chrome Appelez-nous -
7 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 14.72

8 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

9 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

10 M0310336 Plug, Button (blk) Appelez-nous -
11 10519901 Gasket, Bracket Appelez-nous -
12 R0156854 Lvbrd&gskt Assy. Appelez-nous -
13 10561601 Assy, Hinge Pin Appelez-nous -
14 10582202 Retainer, Ref. Trim Appelez-nous -
15 C8964402 Bushing, Top Appelez-nous -
16 10161802 Door Stop Appelez-nous -
17 R0181181 Closure, Door (ebony)   (Replaces: D7833202) In-Stock Immediately $ 7.55

18 D7838402 Closure, Door (ebony) Appelez-nous -
19 10520904 Harness-ref Dr Kit Appelez-nous -
20 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

21 M0217204 Screw Appelez-nous -
22 M0335411 Connector-12 Pin Appelez-nous -
23 10399502 Kit,btm Hinge Shim Appelez-nous -
23 10399501 Kit,btm Hinge Shim Appelez-nous -
24 10535308 Trim Assy Appelez-nous -
25 10163615 Hinge, Bottom Appelez-nous -
26 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

27 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

28 10133201 Trim Ref Door Top Appelez-nous -
29 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75

30 10133301 Trim, Ref Door Bottom Appelez-nous -
31 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

32 D7853802 Trim Center Refr K Appelez-nous -
33 D7792802 Lower Trim Ref Door K Appelez-nous -
34 D7863001 Inner Pad K Appelez-nous -
35 D7826603 Handle Appelez-nous -
36 D7863101 Outer Pad K Appelez-nous -
37 R9800670 Kit, Screw   (Replaces: M0211030) Special Order $ 10.58

38 M0215116 Screw Appelez-nous -
39 C8972304 Shim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

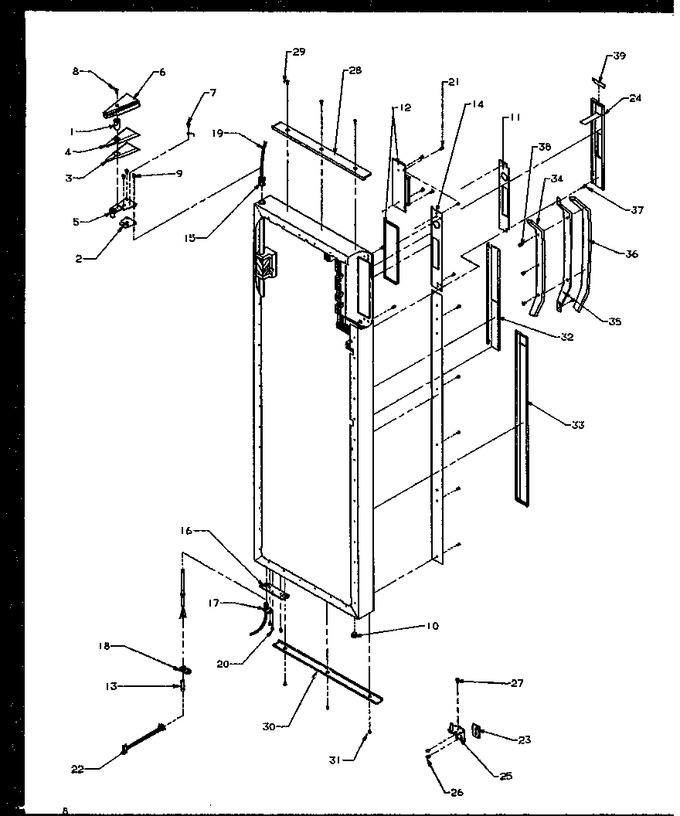

Diagram for SXDE27NPL (BOM: P1162204W L)
