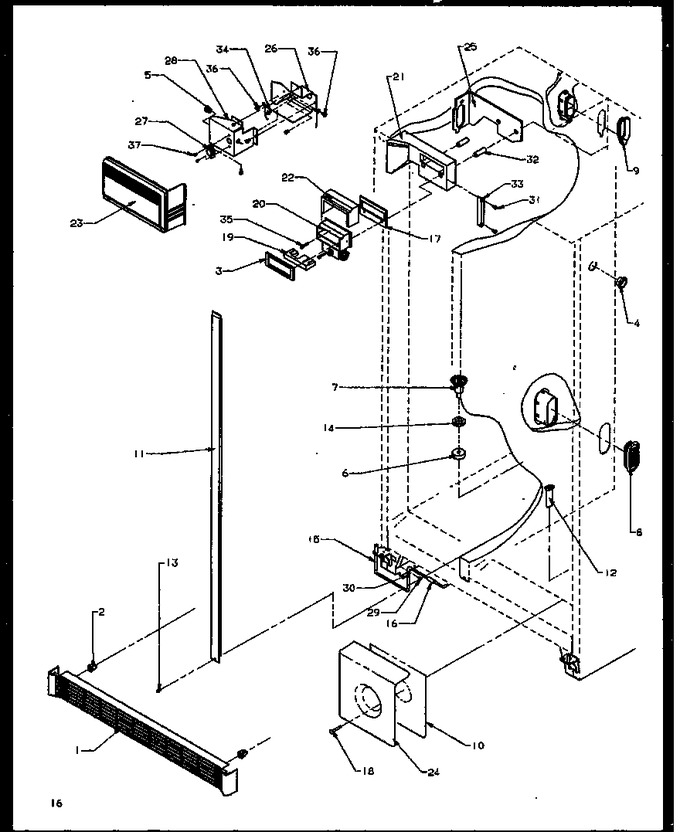

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10470301		Kit, Toe Grille (blk)		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
3	10383201		Gasket, Damper		Appelez-nous	-
4	A3187801		Retainer		Appelez-nous	-
5	A4554806		Snap Bushing		Appelez-nous	-
6	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
7	W10815413		Funnel, Drain   (Replaces: D7753901)			Immediately	$ 51.50
8	D7785401		Grille-rtn Air		Appelez-nous	-
9	10178001		Tunnel Air Supply		Appelez-nous	-
10	D7793403		Insulation Cut Tank		Appelez-nous	-
11	Y00000000		See Note Vrt Mullion, Enot Replaceable		Appelez-nous	-
12	D7793501		Grommet		Appelez-nous	-
13	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
14	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
15	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
16	WP4373559		Union K   (Replaces: B5706901)				$ 81.22
17	B8345401		Gasket, Damper		Appelez-nous	-
18	C6457701		Clip K		Appelez-nous	-
19	C8902601		Insert, Control		Appelez-nous	-
20	D7832702		Control-damper		Appelez-nous	-
21	10176604		Duct-waxed Air		Appelez-nous	-
22	D7788201		Insulation		Appelez-nous	-
23	D7790333		Cover, Control		Appelez-nous	-
24	D7879302		Cover, Tank Insul.		Appelez-nous	-
25	10177901		Gasket, Air Duct		Appelez-nous	-
26	D7822402		Box, Bottom Control		Appelez-nous	-
27	C8983701		Thermistor Domestic		Appelez-nous	-
28	D7832803		Box-top Cont.		Appelez-nous	-
29	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
30	M0102301		Clamp		Appelez-nous	-
31	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
32	A3044208		Spacer Damper		Appelez-nous	-
33	C8977301		Clamp		Appelez-nous	-
34	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
35	M0216539		Screw		Appelez-nous	-
36	WP489399		Screw   (Replaces: M0232903)				$ 7.30
37	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
