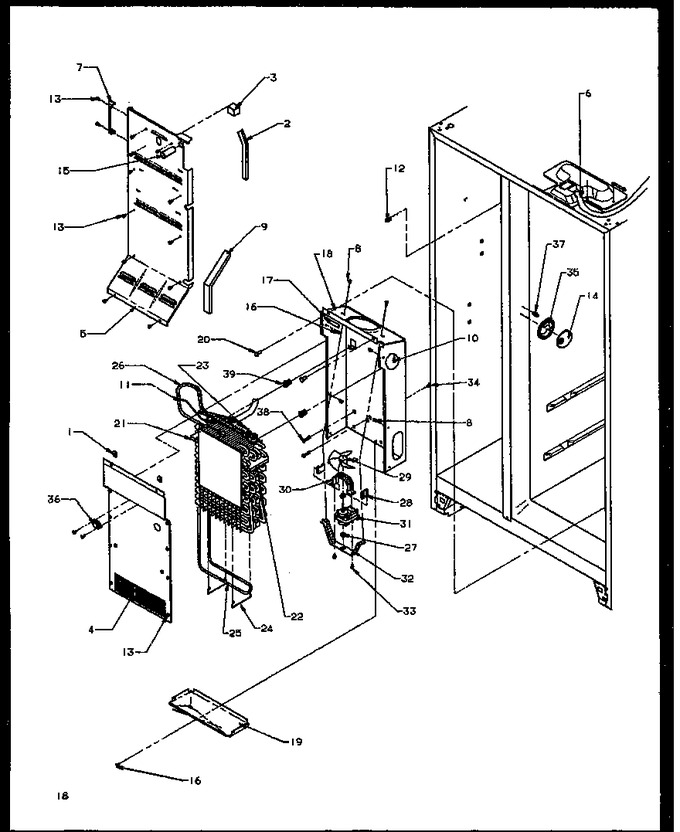

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8324801		Clip Ground		Appelez-nous	-
2	B8386602		Gasket		Appelez-nous	-
3	C8976102		Gasket, Air Block		Appelez-nous	-
4	D7865912		Cover, Evap. Pnt		Appelez-nous	-
5	D7821109		Inner Fr Back Pnt		Appelez-nous	-
6	10554701		Harness-ref Liner		Appelez-nous	-
7	D7838302		Cover, Supply Air		Appelez-nous	-
8	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
9	A3189335		Gasket Foam		Appelez-nous	-
10	WP489399		Screw   (Replaces: M0232903)				$ 7.30
11	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
12	M0322202		Tie Wire		Appelez-nous	-
13	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
14	10164806		Grille Control		Appelez-nous	-
15	A3127410		Ext, Fill Tube		Appelez-nous	-
16	10098801		Rivet		Appelez-nous	-
17	B5757707		Gasket, Foam		Appelez-nous	-
18	D7865808		Evap. Shield		Appelez-nous	-
19	D7850202		Drip Tray Pnt.		Appelez-nous	-
20	M0580003		Grommet		Appelez-nous	-
21	10629601		Block, Air Coil (left)		Appelez-nous	-
22	10629001		Block, Air Coil (right)		Appelez-nous	-
23	10544002		Kit, Thermostat		Appelez-nous	-
24	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
25	WP12049801		Heater, Evap   (Replaces: 10428405)				$ 149.50
26	R0170049		Assy,low Side		Appelez-nous	-
27	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
28	A1047901		Shim		Appelez-nous	-
29	C8795501		Fan-evap		Appelez-nous	-
30	C8881302		Brkt-mtr Mt/up		Appelez-nous	-
31	10654201		Assy, Evap Fn Mtr		Appelez-nous	-
32	D7767704		Bracket-motor/shroud		Appelez-nous	-
33	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
34	M0580002		Grommet A		Appelez-nous	-
35	10164702		Control-air		Appelez-nous	-
36	C8983701		Thermistor Domestic		Appelez-nous	-
37	10426801		Clip, Air Tunnel		Appelez-nous	-
38	10527401		Clip, Evap		Appelez-nous	-
39	10623001		Clip, Evaporator		Appelez-nous	-
