SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Cabinet Back


03 - Crushed Ice Bucket


04 - Drain And Rollers


05 - Evap And Air Handling


06 - Fz Door


07 - Fz Door


08 - Fz Shelving And Ref Light


09 - Ice And Water Cavity


10 - Ice Bucket And Ice Maker


11 - Machine Compartment


12 - Ref Door


13 - Ref Door Hinge And Trim Parts


14 - Ref Shelving And Drawers


15 - Ref/fz Controls And Cabinet Parts

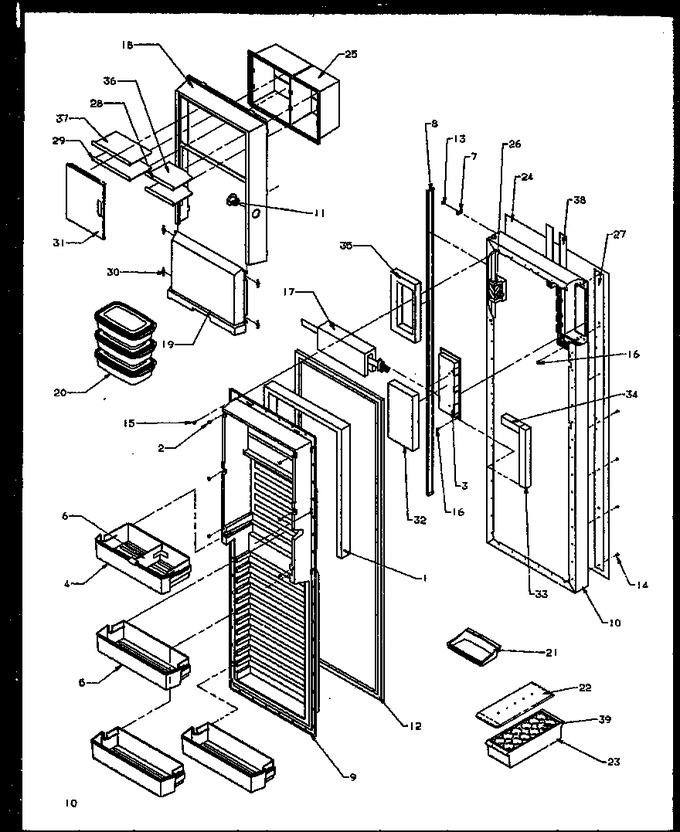

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523563		Insulation Ft. K		Appelez-nous	-
2	10165101		Clip-tubular		Appelez-nous	-
3	D7832904		Cover,p.c. Board		Appelez-nous	-
4	10111005		Bucket, Igloo		Appelez-nous	-
5	10111104		Ref Dr Bucket		Appelez-nous	-
6	10169005		Snugger, Shelf		Appelez-nous	-
7	10137601		Clip Trim		Appelez-nous	-
8	10133101		Trim Vertical		Appelez-nous	-
9	10111302		Liner Ref Door		Appelez-nous	-
10	10057507W		Assy. Ref. Door Fm		Appelez-nous	-
10	10057507E		Assy Ref.dr Fm		Appelez-nous	-
10	10057507L		Assy Ref. Door Fm		Appelez-nous	-
11	10165001		Tunnel-air		Appelez-nous	-
12	10359701		Gasket, Door (w Ref)		Appelez-nous	-
12	10359703		Gasket, Door (e Ref)		Appelez-nous	-
13	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
14	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
15	M0219730		Screw				$ 7.65
16	M0232804		Screw		Appelez-nous	-
17	B0523585		Insulation Batt Per Foot		Appelez-nous	-
18	10154901		Frame-igloo Dairy		Appelez-nous	-
19	10111808		Door, Igloo		Appelez-nous	-
20	D7806405		Container Sec. Ser.		Appelez-nous	-
21	10310901		Tray, Butter		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10423120		Bin, Egg		Appelez-nous	-
24	10096904		Panel Black Glass		Appelez-nous	-
25	10154801		Cavity Dairy		Appelez-nous	-
26	B5629055		Insulation Batt		Appelez-nous	-
27	10582102		Retainer, Ref. Trim		Appelez-nous	-
28	10162003		Ext. Hz Dairy Shelf		Appelez-nous	-
29	10162004		Ass``y, Shelf		Appelez-nous	-
30	10162101		Glide-igloo Door		Appelez-nous	-
31	10161608		Door, Dairy		Appelez-nous	-
32	B5612028		Insulation Batt		Appelez-nous	-
33	B5629059		Insulation Batt		Appelez-nous	-
34	B5629060		Insulation Batt		Appelez-nous	-
35	10271101		Insul. Batt.		Appelez-nous	-
36	10161901		Ass`y, Shelf Remove		Appelez-nous	-
37	10161902		Ass``y, Shelf		Appelez-nous	-
38	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
39	10436504		Tray, Egg		Appelez-nous	-
