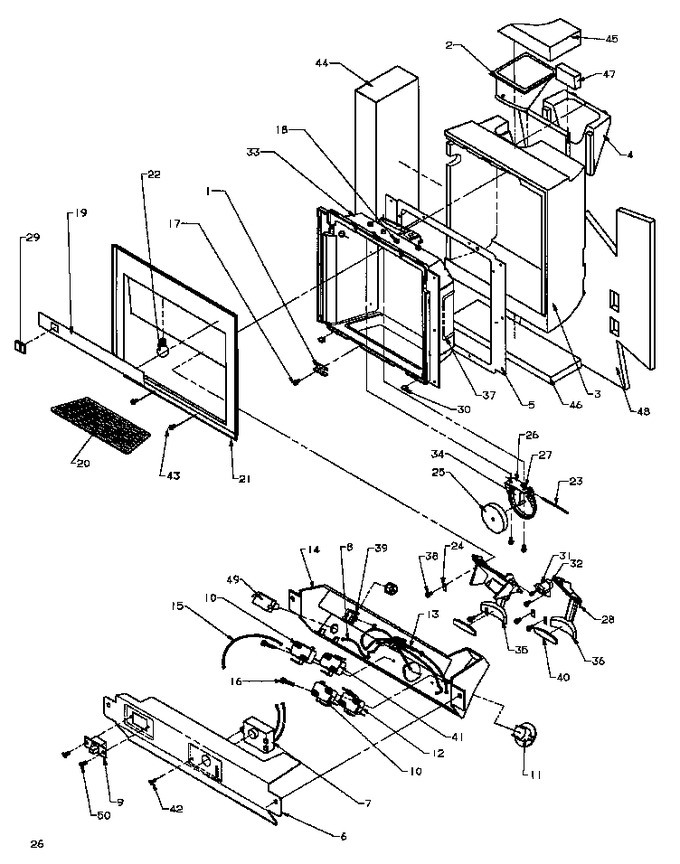

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8992901 | Clip |
|
- | |||||
| 2 | 10131401 | Ice Chute |
|
- | |||||
| 3 | 10164601 | Control-air |
|
- | |||||
| 4 | 10164501 | Insul-ice Chute |
|
- | |||||
| 5 | D7791001 | Gasket-cavity |
|
- | |||||
| 6 | 10131801 | Cover-elect Brkt |
|
- | |||||
| 7 | D7854104 | Switch-photosensitive |
|
- | |||||
| 8 | D7726590 | Wire-jumper |
|
- | |||||
| 9 | 10166002 | Switch-crushed/cube |
|
- | |||||
| 10 | WP10533003 | Switch, Limit (ice Disp) (Replaces: 10533003) |
|
$ 73.29 | |||||
| 11 | 10131701 | Socket, Light |
|
- | |||||
| 12 | 10533002 | Switch, Limit (water Disp) |
|
- | |||||
| 13 | D7726593 | Wire Jumper |
|
- | |||||
| 14 | 10323305 | Bracket, Elec Mtg |
|
- | |||||
| 15 | D7726592 | Wire-jumper |
|
- | |||||
| 16 | M0237809 | Screw, T.f. |
|
- | |||||
| 17 | M0216517 | Screw |
|
- | |||||
| 18 | M0274701 | Retainer, Ring |
|
- | |||||
| 19 | D7842223 | Membrane Facade E |
|
- | |||||
| 20 | D7750602 | Grille Sump (black) |
|
- | |||||
| 21 | D7877526 | Facade-dispenser, Black |
|
- | |||||
| 22 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 14.52 | |||||
| 23 | A1061501 | Pin, Chute Door |
|
- | |||||
| 24 | A1061601 | Retainer, Ice Arm |
|
- | |||||
| 25 | B8380701 | Insulation, Chute Door |
|
- | |||||
| 26 | B8380801 | Brkt-chute Door |
|
- | |||||
| 27 | B8380901 | Spring,chute Door |
|
$ 7.18 | |||||
| 28 | B8385401 | Spring, Return |
|
- | |||||
| 29 | 10176301 | Cap-silver Switch |
|
- | |||||
| 30 | B8390301 | Clip, Facade |
|
- | |||||
| 31 | C8972501 | Retainer Door Delay |
|
- | |||||
| 32 | C8973601 | Delay, Door |
|
- | |||||
| 33 | D7750022 | Cavity,dispenser(black) |
|
- | |||||
| 34 | 10246601 | Kit,chute Dr No.3 |
|
- | |||||
| 35 | D7750303 | Arm Ice Actuater |
|
- | |||||
| 36 | 10164901 | Arm,water Actuater |
|
- | |||||
| 37 | 10176101 | Heater-cavity |
|
- | |||||
| 38 | M0211116 | Screw, Sm |
|
- | |||||
| 39 | B5667304 | Wire Clip |
|
- | |||||
| 40 | B8390201 | Pad, Actuating |
|
- | |||||
| 41 | 10533001 | Switch, Limit |
|
$ 14.43 | |||||
| 42 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 43 | M0219601 | Screw |
|
- | |||||
| 44 | B5629052 | Insulation Batt |
|
- | |||||
| 45 | B5629053 | Insulation Batt |
|
- | |||||
| 46 | B5629054 | Insulation Batt |
|
- | |||||
| 47 | B5629058 | Insulation Batt |
|
- | |||||
| 48 | 10220201 | Insulation Batt |
|
- | |||||
| 49 | 10166101 | Switch-light Cavity |
|
$ 6.49 | |||||
| 50 | M0234003 | Screw |
|
- | |||||
| NI | R0156692 | Kit,chute Dr No.3 |
|
- |
