Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B0523563 Insulation Ft. K Appelez-nous -
2 10165101 Clip-tubular Appelez-nous -
3 D7832904 Cover,p.c. Board Appelez-nous -
4 10111006 Bucket, Igloo Appelez-nous -
5 10111104 Ref Dr Bucket Appelez-nous -
6 10169005 Snugger, Shelf Appelez-nous -
7 10271101 Insul. Batt. Appelez-nous -
8 10633301 Trim, Door Appelez-nous -
9 10111302 Liner Ref Door Appelez-nous -
10 10057510E Assy Ref.dr Fm Appelez-nous -
11 10165001 Tunnel-air Appelez-nous -
12 10359703 Gasket, Door (e Ref) Appelez-nous -
13 10161901 Ass`y, Shelf Remove Appelez-nous -
14 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

15 M0219730 Screw Special Order $ 7.65

16 M0232804 Screw Appelez-nous -
17 B0523585 Insulation Batt Per Foot Appelez-nous -
18 10154902 Frame, Igloo/dairy Appelez-nous -
19 10111809 Door, Igloo Appelez-nous -
20 D7806405 Container Sec. Ser. Appelez-nous -
21 10310901 Tray, Butter Appelez-nous -
22 10436404 Lid, Utility Special Order $ 60.85

23 10423120 Bin, Egg Appelez-nous -
24 10161902 Ass``y, Shelf Appelez-nous -
25 10154801 Cavity Dairy Appelez-nous -
26 B5629055 Insulation Batt Appelez-nous -
27 10582102 Retainer, Ref. Trim Appelez-nous -
28 10162003 Ext. Hz Dairy Shelf Appelez-nous -
29 10162004 Ass``y, Shelf Appelez-nous -
30 10162101 Glide-igloo Door Appelez-nous -
31 10161611 Door, Dairy Appelez-nous -
32 B5612028 Insulation Batt Appelez-nous -
33 B5629059 Insulation Batt Appelez-nous -
34 B5629060 Insulation Batt Appelez-nous -
35 10436504 Tray, Egg Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

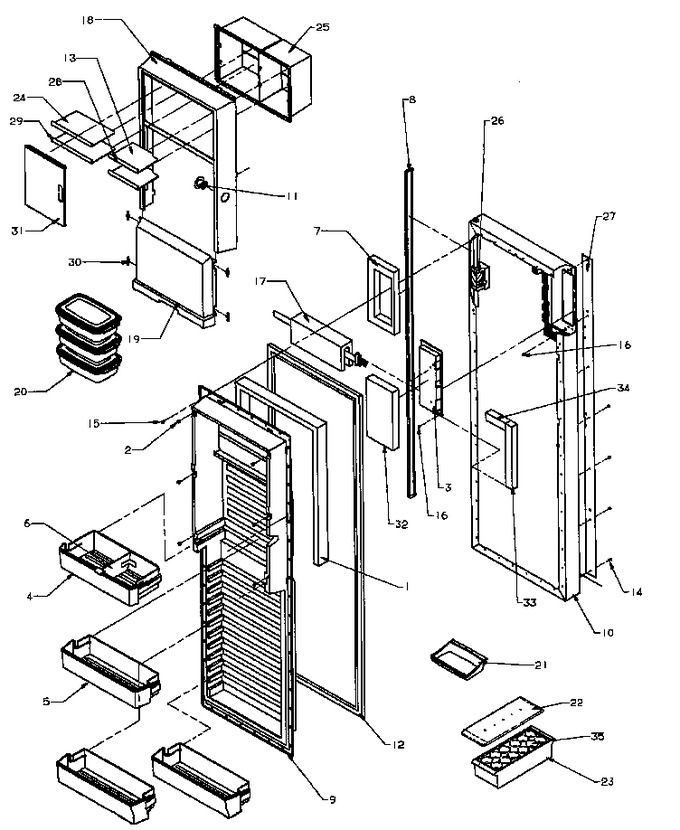

Diagram for SXDE27QE (BOM: P1162208W E)
