SELECT A DIAGRAM

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Bucket And Ice Maker


10 - Machine Compartment


11 - Ref Door


12 - Ref Door Hinge And Trim Parts


13 - Ref Shelving And Drawers


14 - Ref/fz Controls And Cabinet Parts

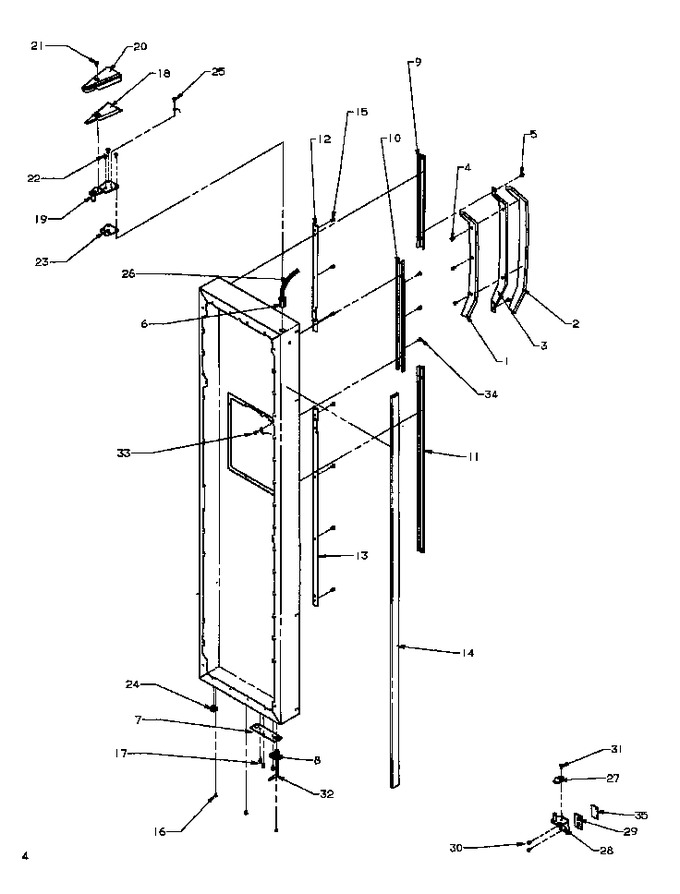

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
2	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
3	D7826603		Handle		Appelez-nous	-
4	M0215116		Screw		Appelez-nous	-
5	R9800670		Kit, Screw   (Replaces: M0211030)				$ 9.52
6	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 7.38
7	10161802		Door Stop		Appelez-nous	-
8	R0181181		Kit,dr Closure   (Replaces: D7751401)			Immediately	$ 6.80
9	D7852103		Upper Trim Frz Dr (w)		Appelez-nous	-
10	D7854003		Trim Center Frz (w)		Appelez-nous	-
11	D7792703		Trim, Lwr Frz Door (w)		Appelez-nous	-
12	D7793002		Retainer, Trim		Appelez-nous	-
13	D7793102		Retainer, Trim		Appelez-nous	-
14	10633301		Trim, Door		Appelez-nous	-
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
16	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
17	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
18	10126601		Foil, Hinge Cover V/a		Appelez-nous	-
19	10185101		Top Hinge-e Ct		Appelez-nous	-
20	10126403		Cover, Hinge R W		Appelez-nous	-
21	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 6.80
22	R9800670		Kit, Screw   (Replaces: M0226331)				$ 9.52
23	B8389001		Shim, Top Hinge		Appelez-nous	-
24	M0310308		Plug, Button (wht)		Appelez-nous	-
25	W11214483		Screw, Mach   (Replaces: M0202321)			Immediately	$ 13.25
26	10164202		Harness Fz Door		Appelez-nous	-
27	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 6.80
28	10163601		Bottom Hinge, Frz		Appelez-nous	-
29	10399502		Kit,btm Hinge Shim		Appelez-nous	-
29	10399501		Kit,btm Hinge Shim		Appelez-nous	-
30	WP67006715		Screw   (Replaces: M0233847)				$ 6.80
31	WP489128		Screw   (Replaces: M0220417)				$ 10.26
32	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 11.75
33	WP489399		Screw   (Replaces: M0232903)				$ 6.57
34	M0216517		Screw		Appelez-nous	-
35	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
