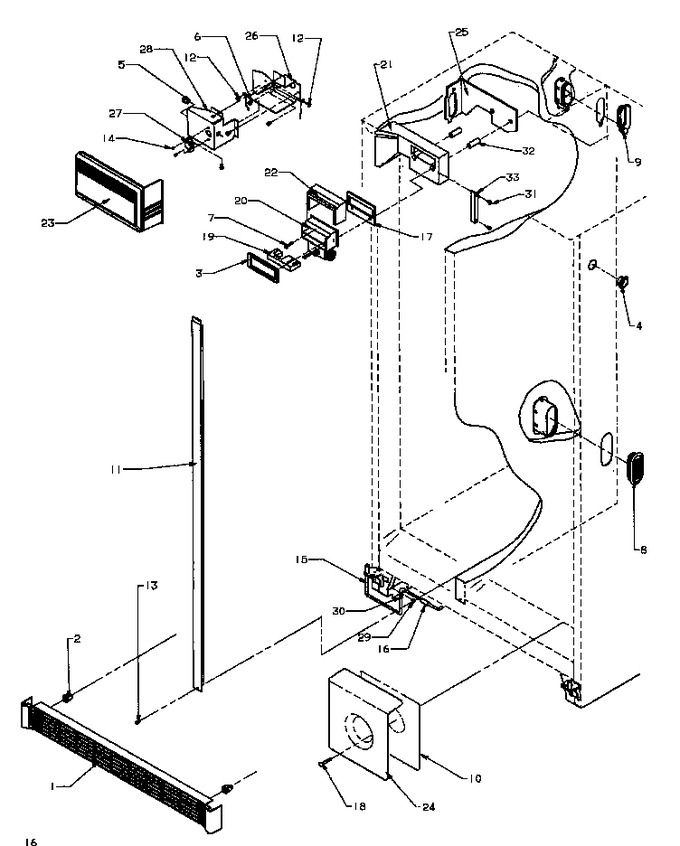

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10470302 | Assy, Toe Grille (white) |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | 10383201 | Gasket, Damper |
|
- | |||||
| 4 | A3187801 | Retainer |
|
- | |||||
| 5 | A4554806 | Snap Bushing |
|
- | |||||
| 6 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.54 | ||||
| 7 | M0216539 | Screw |
|
- | |||||
| 8 | D7785401 | Grille-rtn Air |
|
- | |||||
| 9 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 10 | D7793403 | Insulation Cut Tank |
|
- | |||||
| 11 | Y00000000 | See Note Vertical Mullion, White, Not Replaceable |
|
- | |||||
| 12 | WP489399 | Screw (Replaces: M0232903) |
|
$ 6.57 | |||||
| 13 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 12.12 | |||||
| 14 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 7.88 | ||||
| 15 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 11.75 | |||||
| 16 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 73.10 | |||||
| 17 | B8345401 | Gasket, Damper |
|
- | |||||
| 18 | C6457701 | Clip K |
|
- | |||||
| 19 | C8902601 | Insert, Control |
|
- | |||||
| 20 | D7832702 | Control-damper |
|
- | |||||
| 21 | 10176604 | Duct-waxed Air |
|
- | |||||
| 22 | D7788201 | Insulation |
|
- | |||||
| 23 | D7790331 | Cover, Control |
|
- | |||||
| 24 | D7879302 | Cover, Tank Insul. |
|
- | |||||
| 25 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 26 | D7822404 | Box, Bottom Control |
|
- | |||||
| 27 | C8983701 | Thermistor Domestic |
|
- | |||||
| 28 | D7832805 | Top, Cont. Box |
|
- | |||||
| 29 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.43 | ||||
| 30 | M0102301 | Clamp |
|
- | |||||
| 31 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.70 | ||||
| 32 | A3044208 | Spacer Damper |
|
- | |||||
| 33 | C8977301 | Clamp |
|
- |
