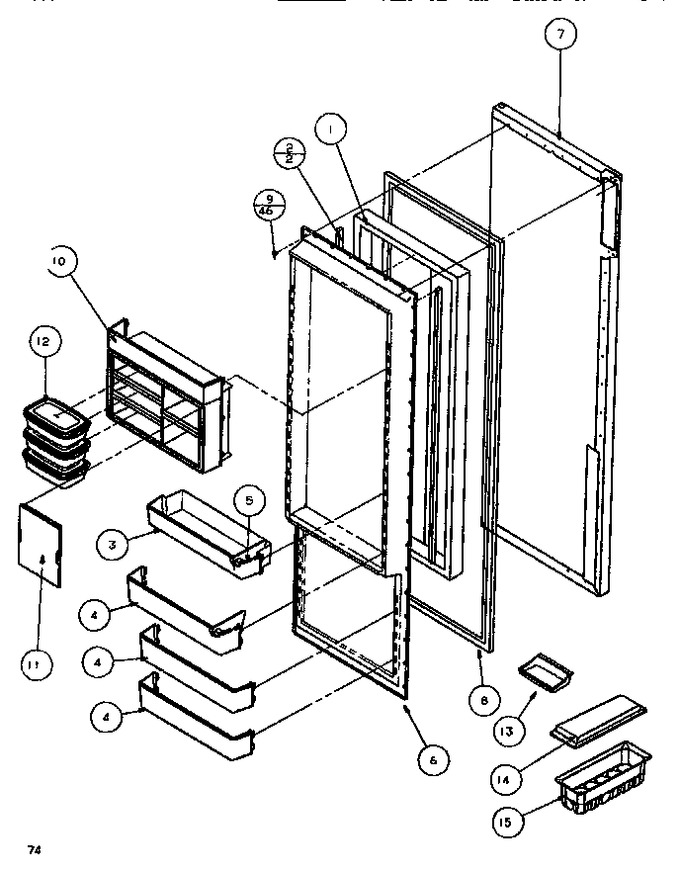

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B0523562 | Insul. By The Ft. |
|
- | |||||
| 2 | C8987104 | Seal, Door Dike |
|
- | |||||
| 3 | D7783310 | Bucket Ref |
|
- | |||||
| 4 | 67003697 | Shelf Ref Door (Replaces: D7783410) |
|
$ 82.08 | |||||
| 5 | D7814607 | Snugger, Door |
|
- | |||||
| 6 | D7828703 | Xinner Door Liner Ref |
|
- | |||||
| 7 | 10300302LQ | Ref Dr Fomd As Cfc 11 |
|
- | |||||
| 7 | 10300302WQ | Ref Dr Fomd Cfc 11 |
|
- | |||||
| 7 | 10300305WQ | As Refr Dr Wh Cfc 11 |
|
- | |||||
| 7 | 10300305LQ | As Refr Dr Alm Cfc 11 |
|
- | |||||
| 8 | 10359701 | Gasket, Door (w Ref) |
|
- | |||||
| 9 | M0219730 | Screw |
|
$ 7.65 | |||||
| 10 | D7781202 | Module-dairy |
|
- | |||||
| 11 | D7781319 | Door Dairy |
|
- | |||||
| 12 | D7806405 | Container Sec. Ser. |
|
- | |||||
| 13 | 10310901 | Tray, Butter |
|
- | |||||
| 14 | D7805909 | Cover, Egg Bucket |
|
- | |||||
| 15 | D7695617 | Bucket-egg |
|
- |
