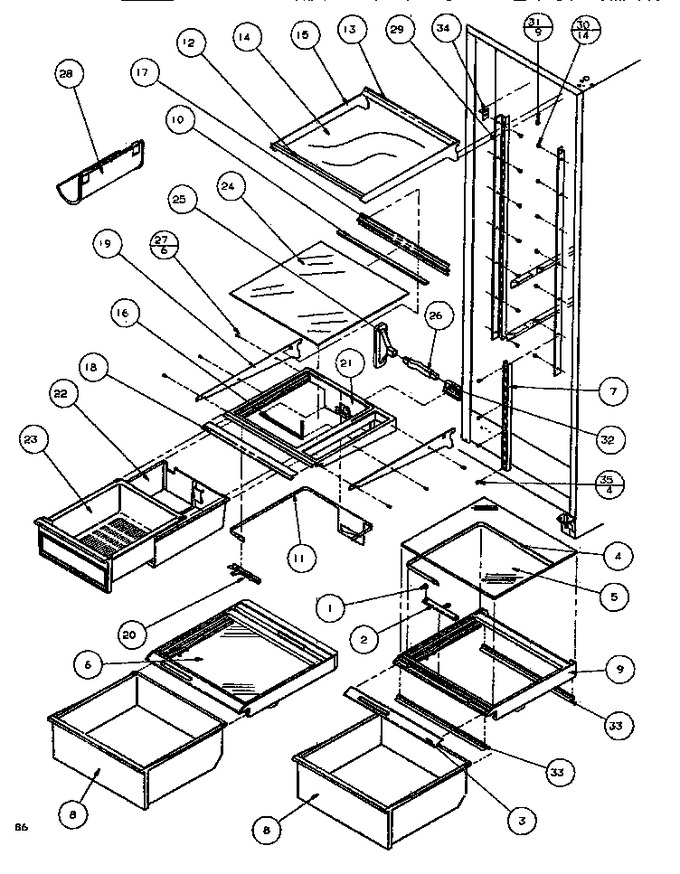

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038403		Knob, Crisper Control		Appelez-nous	-
2	YD7860605		Slide, Crisper		Appelez-nous	-
3	D7616682		Trim Crisper Top Fz		Appelez-nous	-
4	D7859604		Band M.k. Control		Appelez-nous	-
5	D7421274		Glass Crisper Top		Appelez-nous	-
6	10036030		Glass Top Crisper		Appelez-nous	-
7	D7599003		Ladder, Center		Appelez-nous	-
8	D7782127		Pan Crisper		Appelez-nous	-
8	D7782025		Pan Crisper		Appelez-nous	-
9	D7853208		Frame		Appelez-nous	-
9	D7853203		Frame		Appelez-nous	-
10	10043102		Ext. Rear Glass		Appelez-nous	-
11	D7859504		Band M.k. Control		Appelez-nous	-
12	C8913548		Trim Front		Appelez-nous	-
12	C8913554		Trim, Front Shelf		Appelez-nous	-
13	C8913608		Trim		Appelez-nous	-
13	C8913613		Trim Rear Shelf		Appelez-nous	-
14	10036024		Glass Shelf		Appelez-nous	-
14	10036074		Glass Shelf Half		Appelez-nous	-
15	D7871011		Frame Cont. Shelf		Appelez-nous	-
15	D7871020		Frame, Cont Shelf		Appelez-nous	-
16	A3030353		Gasket		Appelez-nous	-
17	C8990405		Trim, Rear		Appelez-nous	-
18	C8913552		Trim, Front Shelf		Appelez-nous	-
19	D7862931		Side Rail		Appelez-nous	-
19	D7862930		Side Rail		Appelez-nous	-
20	D7859402		Slide-mk Control		Appelez-nous	-
21	D7857005		Frame, M.k		Appelez-nous	-
22	D7698113		Sleeve M.k.		Appelez-nous	-
23	D7698330		Meat Pan		Appelez-nous	-
24	10036027		Glass Top, Meatkeeper Shelf		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	D7547614		Rack, Bottle		Appelez-nous	-
29	D7789807		Ladder Cantilever		Appelez-nous	-
30	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
31	M0580007		Grommet, Screw		Appelez-nous	-
32	D7869101		Ext. Air Duct		Appelez-nous	-
33	D7718403		Seal, Crisper Front		Appelez-nous	-
33	D7718404		Seal, Crisper Rear		Appelez-nous	-
34	C8992301		Bracket		Appelez-nous	-
35	M0230923		Screw		Appelez-nous	-
NI	R0179201		Glass Crisper Top Assy		Appelez-nous	-
NI	R0179199		Glass Crisper Top Assy		Appelez-nous	-
NI	10279114		Glass Full Shelf Assembly		Appelez-nous	-
NI	10279113		Glass Half Shelf Assembly		Appelez-nous	-
