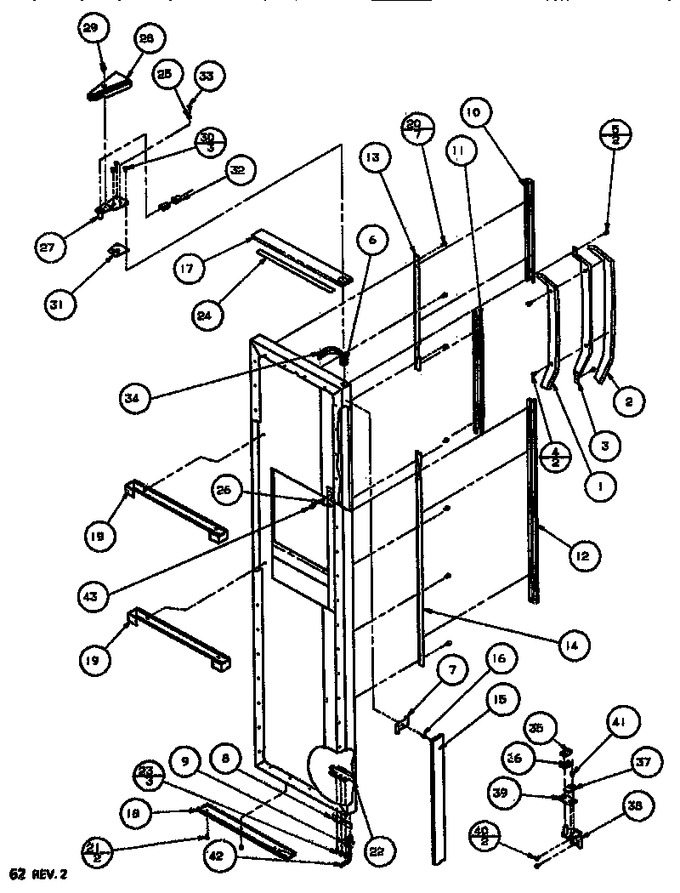

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7863004 | Pad, Handle Inner (alm) |
|
- | |||||
| 1 | D7863003 | Inner Pad K |
|
- | |||||
| 1 | D7863002 | Pad, Handle Inner (wht) |
|
- | |||||
| 2 | D7863103 | Outer Pad K |
|
- | |||||
| 2 | D7863104 | Pad, Handle Outer (alm) |
|
- | |||||
| 2 | D7863102 | Pad, Handle Outer (wht) |
|
- | |||||
| 3 | D7826604 | Handle, Door |
|
- | |||||
| 4 | M0215115 | Screw |
|
- | |||||
| 5 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 9.26 | |||||
| 6 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 7 | 10147401 | Clip Trim |
|
- | |||||
| 8 | C8972402 | Stop, Door |
|
- | |||||
| 9 | R0181181 | Kit,dr Closure (Replaces: D7751401) |
|
Immediately | $ 7.55 | ||||
| 10 | D7852108 | Trim Frz Dr. Upper |
|
- | |||||
| 10 | D7852109 | Trim Frz Dr. Upper Al. |
|
- | |||||
| 10 | D7852107 | Trim Frz Dr Upper |
|
- | |||||
| 11 | D7854004 | Trim Center Frz |
|
- | |||||
| 11 | D7854003 | Trim Center Frz (w) |
|
- | |||||
| 11 | D7854005 | Trim Center Frz (l) |
|
- | |||||
| 12 | D7792707 | Trim, Frz Lower |
|
- | |||||
| 12 | D7792708 | Trim, Frz Lower |
|
- | |||||
| 12 | D7792709 | Trim, Frz Lower |
|
- | |||||
| 13 | D7793002 | Retainer, Trim |
|
- | |||||
| 14 | D7793102 | Retainer, Trim |
|
- | |||||
| 15 | D7877601 | Trim |
|
- | |||||
| 16 | M0213815 | Screw |
|
- | |||||
| 17 | D7872403 | Trim, Fz Dr. Top |
|
- | |||||
| 18 | D7872501 | Trim |
|
- | |||||
| 19 | D7837401 | Support, Handle |
|
- | |||||
| 20 | M0213815 | Screw |
|
- | |||||
| 21 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 22 | D7790801 | Nut, Door Stop |
|
- | |||||
| 23 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 24 | M0275148 | Tape Per Roll K |
|
- | |||||
| 25 | M0272803 | Lock Washer |
|
- | |||||
| 26 | M0272803 | Lock Washer |
|
- | |||||
| 27 | D7757803 | Top Hinge Assy |
|
- | |||||
| 28 | D7789505 | Hinge Cover Blk. |
|
- | |||||
| 29 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.55 | ||||
| 30 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 31 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 32 | B8384101 | Connector-6 Pin |
|
- | |||||
| 33 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
$ 14.72 | |||||
| 34 | D7843501 | Harness Dr. |
|
- | |||||
| 35 | B8387701 | Shim, Door Closure |
|
- | |||||
| 36 | B8387702 | Shim, Door Closure |
|
- | |||||
| 37 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 7.55 | ||||
| 38 | 10163601 | Bottom Hinge, Frz |
|
- | |||||
| 39 | B8386701 | Kit,btm Hinge Shim |
|
- | |||||
| 39 | B8386703 | Kit,btm Hinge Shim |
|
- | |||||
| 39 | B8386702 | Kit,btm Hinge Shim |
|
- | |||||
| 40 | M0233844 | Screw, T F |
|
- | |||||
| 41 | WPW10068250 | Screw (Replaces: M0202530) |
|
$ 4.27 | |||||
| 42 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 13.05 | |||||
| 43 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| NOTE: | Note: Refrigerator Door Pan (ref. No. 1) Does Not Include Door Stop Mounting Nutand Handle Supports (ref. Nos. 4 & 34 On Previous Page) On Refrigerator Door, |
|
- | ||||||
| NI | R0164239 | Door Harness Assy |
|
- |
