Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7788901 Mach Back Assy A Appelez-nous -
2 D7790601 Drain Pan Appelez-nous -
3 M0219704 Screw Appelez-nous -
4 B5759604 Gasket Appelez-nous -
5 C8973502 Bracket, Timer Appelez-nous -
6 D7835501 Support M.c. Appelez-nous -
7 M0102325 Clamp Appelez-nous -
8 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

9 D7790501 Support Drain Pan Appelez-nous -
10 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

11 M0233844 Screw, T F Appelez-nous -
12 WPB2150504 Drier   (Replaces: B5715001) Special Order $ 136.98

13 B5742601 Blade, Fan Appelez-nous -
14 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 7.55

15 M0272803 Lock Washer Appelez-nous -
16 A3041801 Strap K Appelez-nous -
17 B8384901 Pin, Comp. Mtg. Appelez-nous -
18 B8385001 Clip, Comp. Mtg Appelez-nous -
19 C3689111 Overload Appelez-nous -
21 C3689205 Relay Appelez-nous -
23 B0551801 Terminal Cover Appelez-nous -
24 C8982101 Bracket, Cond Motor Appelez-nous -
25 D7846901 Motor-condenser Appelez-nous -
26 D7351103 Compressor Appelez-nous -
27 D7844201 Bracket, Timer Appelez-nous -
28 10129302 Kit, Defrost Timer Appelez-nous -
29 D7843001 Harness M.c Appelez-nous -
30 D7844102 Cond. Fan Shroud Appelez-nous -
31 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

32 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

33 M0218118 Screw Appelez-nous -
34 M0221332 Screw, Shoulder Appelez-nous -
35 M0223803 Screw Appelez-nous -
36 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

38 M0500107 Grommet K Appelez-nous -
39 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

40 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

42 B8346301 Spacer Cond. Appelez-nous -
43 D7748604 Pan, Base Appelez-nous -
44 D7824503 Condenser Pntd Appelez-nous -
45 M0293703 Speednut Appelez-nous -
46 M0211530 Screw Appelez-nous -
47 C8916701 Spring K Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

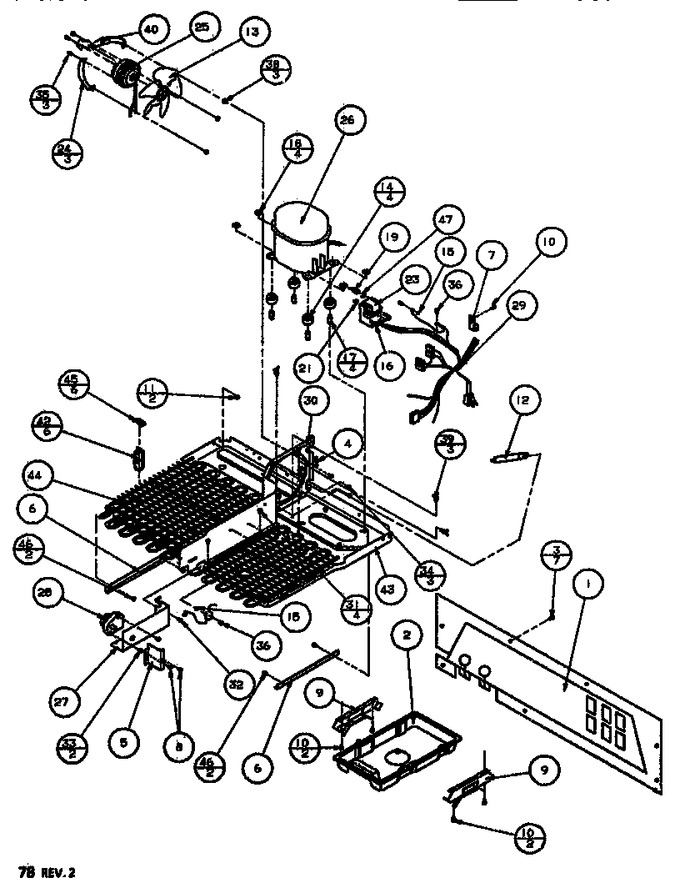

Diagram for SXDT522J (BOM: P7845304W)
