SELECT A DIAGRAM

01 - Evap And Air Handling


02 - Factory Installed Ice Maker


03 - Fz Door


04 - Fz Door


05 - Fz Shelving And Ref Light


06 - Machine Compartment


07 - Ref Door


08 - Ref Door


09 - Ref Shelving And Draweres


10 - Ref/fz Controls And Cabinet Parts


11 - Rollers And Back Unit

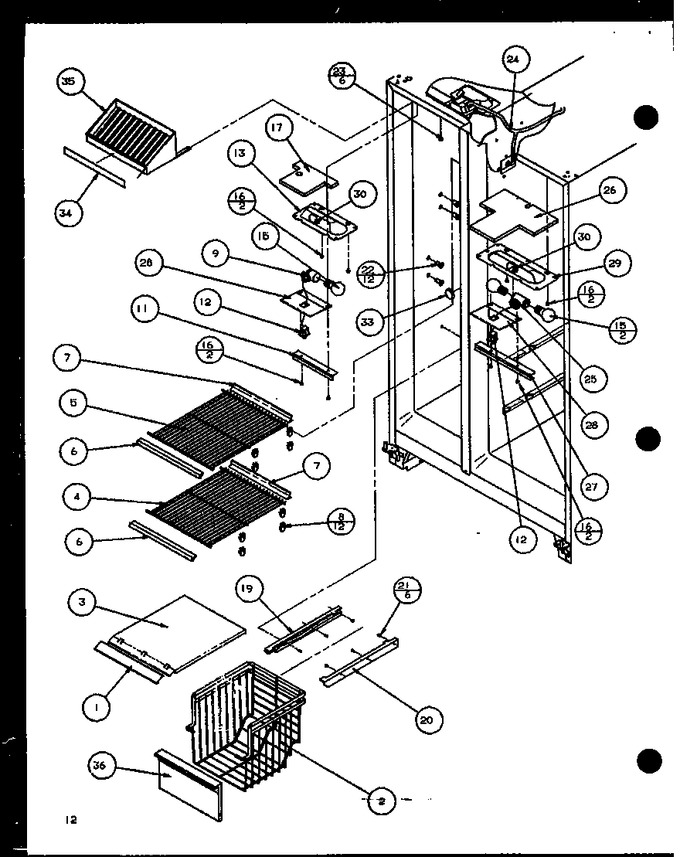

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616620		Trim, Frz Shelf		Appelez-nous	-
2	D7820801		Basket, Frz		Appelez-nous	-
3	D7781506		Freezer Shelf Pnt		Appelez-nous	-
4	D7788307		Shelf Freezer		Appelez-nous	-
5	D7788302		Shelf Wire Frz		Appelez-nous	-
6	C8913515		Trim, Rear Frz Shelf		Appelez-nous	-
7	C8913607		Trim, Rear Frz Shelf		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	C8973401		Socket-light		Appelez-nous	-
11	10014704		Shield Light		Appelez-nous	-
12	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
13	D7760101		Housing, Fz Light		Appelez-nous	-
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
17	C8976301		Barrier		Appelez-nous	-
19	D7839901		Glide, Frezer. L.h.		Appelez-nous	-
20	D7839902		Glide, Fz, R.h.		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8971701		Plug, Fz Shelf Support		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	D7771301		Harness, Outer Liner		Appelez-nous	-
25	D7808602		Socket, Dual Lamp		Appelez-nous	-
26	C8778301		Insulation		Appelez-nous	-
27	10014705		Light Shield		Appelez-nous	-
28	D7297602		Cover, Light Sw		Appelez-nous	-
29	D7716403		Housing-ref Light		Appelez-nous	-
30	B5733302		Clip, Ground		Appelez-nous	-
33	A3069103		Plug		Appelez-nous	-
34	C8986101		Insert Juice Rack		Appelez-nous	-
35	D7839701		Rack, Juice V		Appelez-nous	-
36	D7820702		Front, Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
