Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10038401 Knob, Crisper Control Appelez-nous -
2 D7860602 Slide Crisper Cont. A Appelez-nous -
3 D7616629 Trim Appelez-nous -
4 D7764105 Damper Hum. Cont. Appelez-nous -
5 D7421269 Glass Crisper Top Appelez-nous -
6 D7856901 Crisper Top Appelez-nous -
7 D7817203 Pan-fruit Appelez-nous -
8 D7782006 Crisper Pan Appelez-nous -
9 D7782204 Slide Crisper Cont Appelez-nous -
10 D7807602 Support Appelez-nous -
11 M0230017 Screw,tc Appelez-nous -
12 C8913513 Trim, Front Shelf Appelez-nous -
13 C8913606 Trim, Glass Shelf Rear Appelez-nous -
14 D7421245 Shelf, Glass A Appelez-nous -
15 D7871006 Frame, Cant. Shelf Appelez-nous -
16 A3263905 Gasket-per Ft Appelez-nous -
17 C8990404 Trim-m.k., Top, Rear Appelez-nous -
18 C8913531 Trim, Front Shelf Appelez-nous -
19 D7862959 Side Rail Appelez-nous -
19 D7862958 Side Rail Appelez-nous -
20 D7859401 Slide-mk Control Appelez-nous -
21 D7859501 Band M.k. Control Appelez-nous -
22 D7817902 Sleeve, M.k V Appelez-nous -
23 D7814002 Pan-meat Appelez-nous -
24 D7421298 Glass Shelf, Mk Appelez-nous -
25 D7873601 Grommet, Mk Appelez-nous -
26 D7869001 Xduct M.k. Air Appelez-nous -
27 M0230028 Screw, No.8-32 X 5/16 Pph (blk) Appelez-nous -
28 D7547603 Rack, Bottle Appelez-nous -
29 D7789804 Ladder Cantilever Appelez-nous -
29 D7789803 Ladder Cantilever Appelez-nous -
30 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

31 M0580007 Grommet, Screw Appelez-nous -
32 10043102 Ext. Rear Glass Appelez-nous -
33 D7718403 Seal, Crisper Front Appelez-nous -
33 D7718404 Seal, Crisper Rear Appelez-nous -
34 D7853202 Frame Crisper Appelez-nous -
35 D7859601 Band Crisper Control Appelez-nous -
36 D7857003 Frame, Mk Appelez-nous -
37 D7869102 Ext. Air Duct Appelez-nous -
38 C8992301 Bracket Appelez-nous -
39 M0118102 Clip Appelez-nous -
NI D7871802 Glass Shelf Assembly Appelez-nous -
NI R0179117 Glass Crisper Top Assy Appelez-nous -
NI D7871301 Crisper Top Assy Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

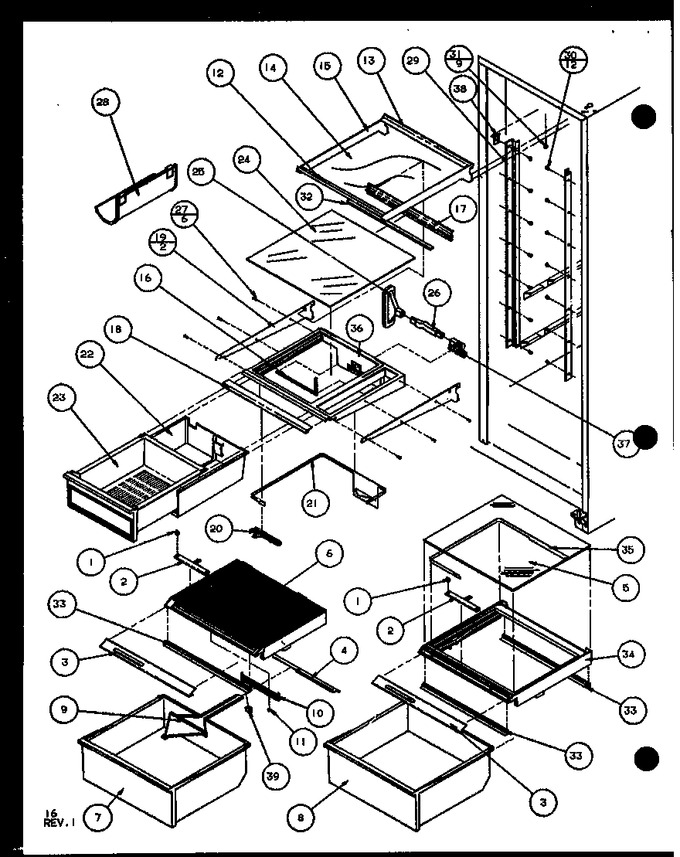

Diagram for SXI20J (BOM: P7870122W)
