SELECT A DIAGRAM

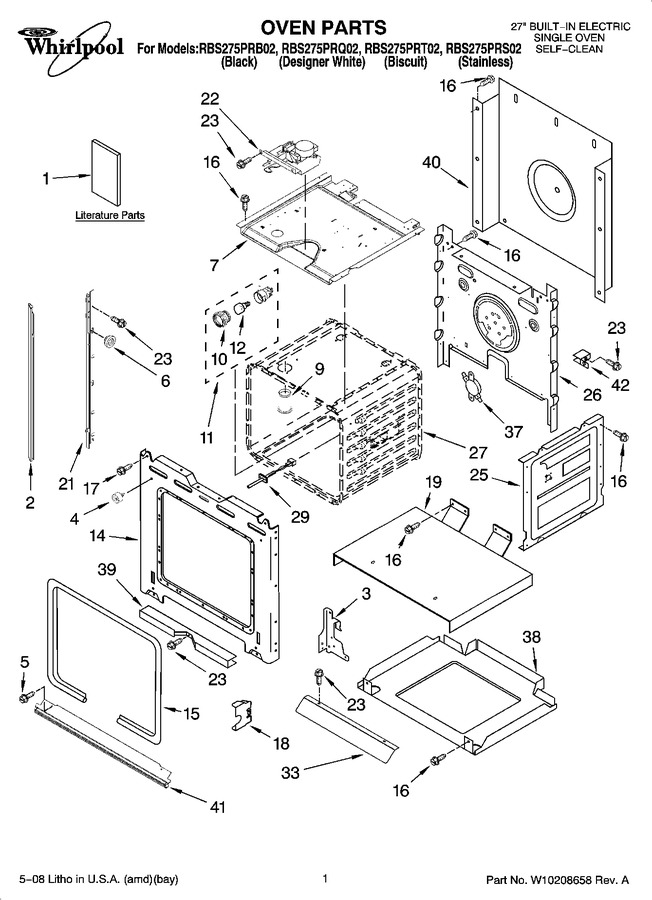

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8301928		Installation, Mwo Trim Kit		Appelez-nous	-
1	8301758		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8303648		Installation Instructions		Appelez-nous	-
1	W10162170		Use & Care Guide		Appelez-nous	-
1	8304571		Installation/ Undercounter		Appelez-nous	-
2	W10136096		Trim, Side Right (biscuit)		Appelez-nous	-
2	W10136094		Trim, Side Right (white)		Appelez-nous	-
2	W10166951		Trim, Side Left (stainless)		Appelez-nous	-
2	W10136093		Trim, Side Right (black)		Appelez-nous	-
2	W10136097		Trim, Side Left (biscuit)		Appelez-nous	-
2	W10136095		Trim, Side Left (white)				$ 35.87
2	W10136092		Trim, Side Left (black)		Appelez-nous	-
2	W10166950		Trim, Side Right (stainless)		Appelez-nous	-
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper, Door				$ 7.41
5	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
5	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
6	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
7	4455864		Top, Chassis				$ 22.85
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	W10130370		Frame, Front				$ 79.39
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	4452152		Bracket, Mounting- Bottom Vent				$ 35.18
19	4451477		Support, Insulation		Appelez-nous	-
21	8303115		Rail, Side (right)				$ 164.47
21	8303116		Rail, Side (left)		Appelez-nous	-
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	W10161109		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
33	9760676		Deflector, Vent		Appelez-nous	-
37	WP9759243		Thermostat   (Replaces: 9759243)			Immediately	$ 55.44
38	4455529		Base, Chassis		Appelez-nous	-
39	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
40	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
41	8303581		Trim, Bottom (biscuit)		Appelez-nous	-
41	8303578		Trim, Bottom (stainless)		Appelez-nous	-
41	8303579		Trim, Bottom (black)		Appelez-nous	-
41	8303580		Trim, Bottom (white)		Appelez-nous	-
42	4449845		Support, Bracket		Appelez-nous	-
	4450364		Insulation, Back		Appelez-nous	-
	4449315		Insulation, Wrap				$ 64.81
