SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

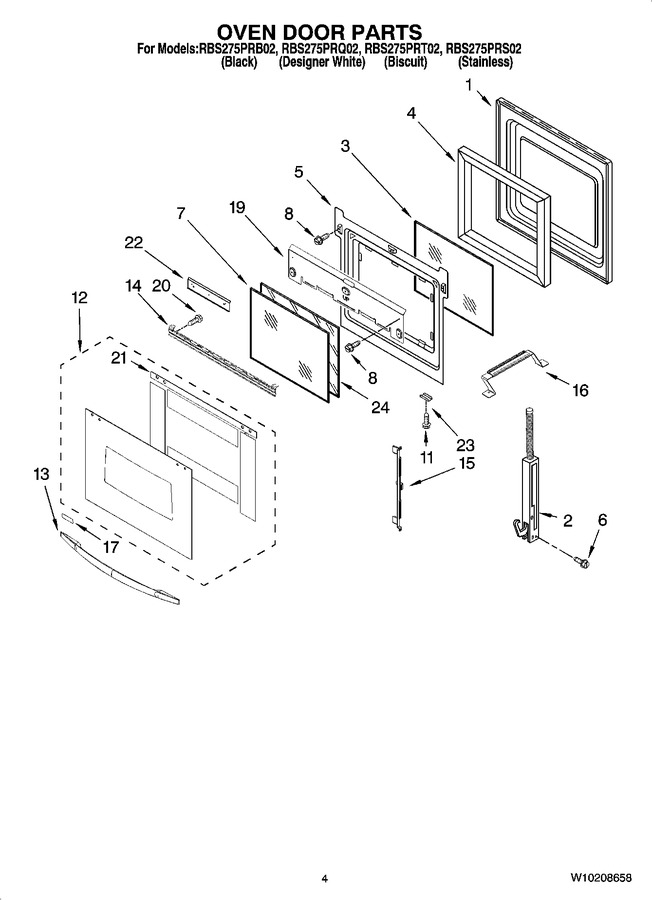

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Door Liner				$ 128.78
2	9760569		Hinge, Door (right)				$ 118.42
2	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 111.96
2	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 114.51
2	9760570		Hinge, Door (left)				$ 117.73
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	4457131		Retainer, Glass				$ 31.95
6	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
7	9759224		Glass, Inner				$ 81.28
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
11	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
12	8303320		Assembly, Door Glass (black)		Appelez-nous	-
12	8303313		Assembly, Door Glass (stainless)		Appelez-nous	-
12	8303341		Assembly, Door Glass (biscuit)		Appelez-nous	-
12	8303338		Assembly, Door Glass (white)		Appelez-nous	-
13	8302812		Door Handle (biscuit)		Appelez-nous	-
13	8302811		Door Handle (white)		Appelez-nous	-
13	8302810		Door Handle (black)		Appelez-nous	-
14	W10136472		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
17	8303811		Nameplate				$ 29.09
19	4457102		Shield, Heat				$ 31.70
20	W10276642		Screw   (Replaces: 4451040)				$ 6.41
21	8303877		Seal-door		Appelez-nous	-
22	4457113		Shield, Heat (bottom)				$ 33.29
23	4451432		Retainer, Clip (stainless)		Appelez-nous	-
24	9759227		Glass. Inner				$ 81.36
