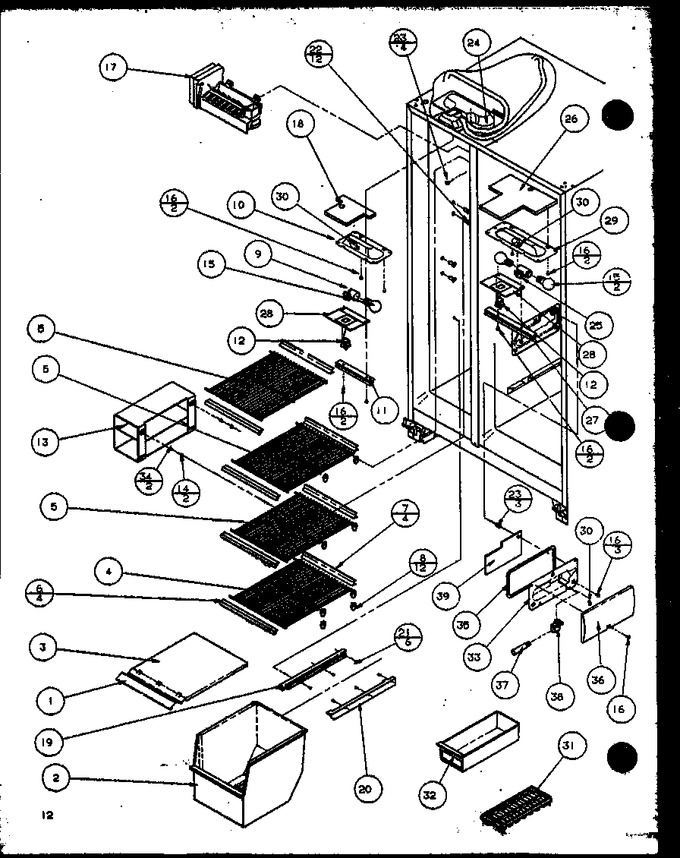

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616690		Trim-fz Shelf		Appelez-nous	-
2	D7781415		Basket Freezer Clear		Appelez-nous	-
3	D7781504		Freezer Shelf		Appelez-nous	-
4	D7788314		Shelf Fz Wire		Appelez-nous	-
5	D7788316		Shelf Freezer		Appelez-nous	-
6	10049921		Trim, Front Shelf		Appelez-nous	-
7	C8913609		Trim		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	C8973403		Socket-light		Appelez-nous	-
10	D7760102		Housing Frz Light		Appelez-nous	-
11	10014707		Shield, Light		Appelez-nous	-
12	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
13	D7620104		Rack, Ice		Appelez-nous	-
14	M0270508		Washer		Appelez-nous	-
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
17	Y00000000		See Note Add-on Ice Maker Assembly		Appelez-nous	-
18	C8976301		Barrier		Appelez-nous	-
19	67005375		Glide-l Fz   (Replaces: D7849903)				$ 312.82
20	D7849904		Glide, Freezer Rh		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	10281301		Harness-outer Liner		Appelez-nous	-
25	D7808602		Socket, Dual Lamp		Appelez-nous	-
26	C8778301		Insulation		Appelez-nous	-
27	10014708		Shield, Light		Appelez-nous	-
28	D7297603		Cover, Light Sw		Appelez-nous	-
29	D7716404		Housing-ref Light		Appelez-nous	-
30	B5733302		Clip, Ground		Appelez-nous	-
31	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
32	D7620029		Bin-ice		Appelez-nous	-
33	10270201		Housing, Light		Appelez-nous	-
34	M0219559		Screw		Appelez-nous	-
35	A3189337		Gasket		Appelez-nous	-
36	Y10270101		Cover-light		Appelez-nous	-
37	WPA3073101		Bulb 120v. 40w.   (Replaces: A3079001)			Immediately	$ 12.72
38	10281601		Socket-light		Appelez-nous	-
39	10278001		Insulation		Appelez-nous	-
