Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10178402 Cover, O.c.back Appelez-nous -
2 WP90767 Screw   (Replaces: M0211216) In-Stock Immediately $ 8.25

3 B8310503 Cord - Power Appelez-nous -
4 M0103901 Clamp Appelez-nous -
5 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

6 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

7 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

8 10178502 Wire Cover Appelez-nous -
9 10222901 Harness, Cabinet Appelez-nous -
10 10178701 Grommet Wire Appelez-nous -
11 10178801 Grommet Wire Appelez-nous -
12 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

13 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

14 A3189336 Gasket, Foam Appelez-nous -
15 M0107701 Clamp-tube Appelez-nous -
16 M0232317 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

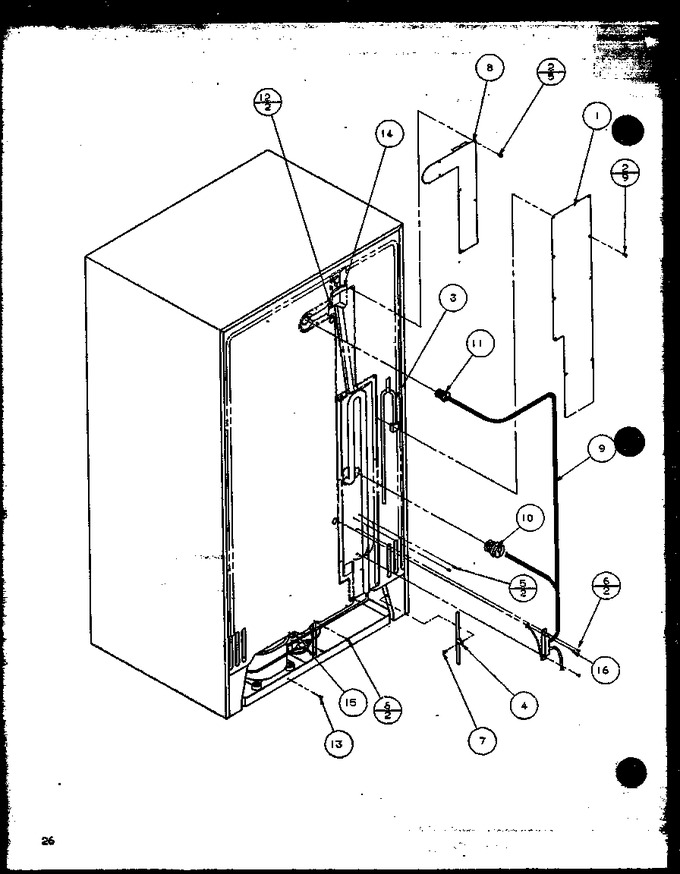

Diagram for SZ25MW (BOM: P1120709W W)
