SELECT A DIAGRAM

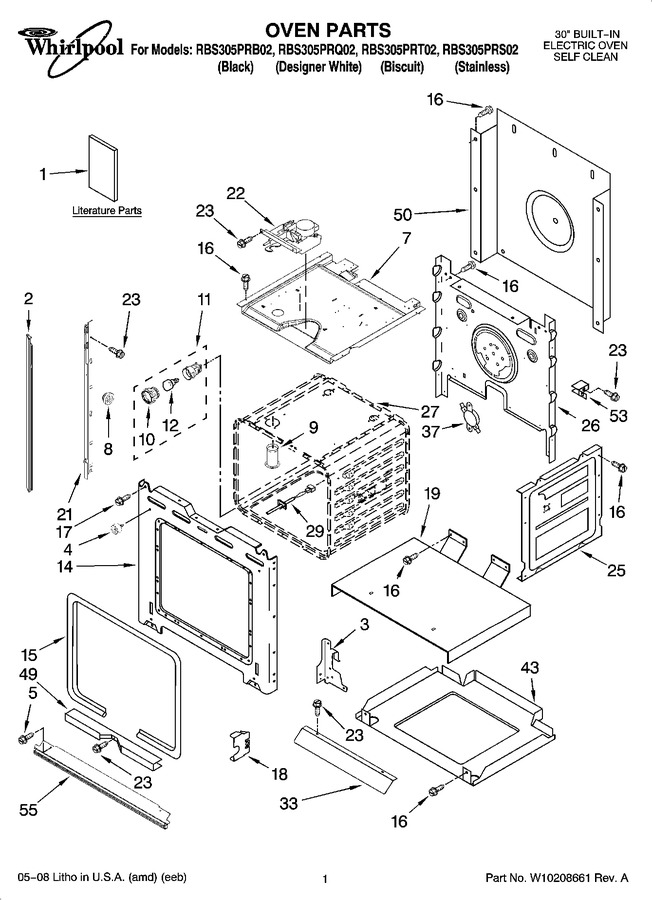

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304571		Installation/ Undercounter		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8301928		Instructions Microwave Trim Kit		Appelez-nous	-
1	8303647		Installation Instructions		Appelez-nous	-
1	W10162170		Use & Care Guide		Appelez-nous	-
1	8301758		Tech Sheet		Appelez-nous	-
2	W10166950		Trim, Side Right (stainless)		Appelez-nous	-
2	W10136096		Trim, Side Right (biscuit)		Appelez-nous	-
2	W10136094		Trim, Side Right (white)		Appelez-nous	-
2	W10166951		Trim, Side Left (stainless)		Appelez-nous	-
2	W10136093		Trim, Side Right (black)		Appelez-nous	-
2	W10136097		Trim, Side Left (biscuit)		Appelez-nous	-
2	W10136095		Trim, Side Left (white)				$ 35.87
2	W10136092		Trim, Side Left (black)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
5	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
7	8303099		Top Chassis				$ 70.97
8	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WPW10115831		Frame, Front   (Replaces: W10130368)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	4452152		Bracket, Mounting				$ 35.18
19	4451478		Support, Insulation				$ 54.10
21	8303115		Rail, Side (right)				$ 164.47
21	8303116		Rail, Side (left)		Appelez-nous	-
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	W10161110		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
33	9760677		Deflector, Vent				$ 155.46
37	WP9759243		Thermostat   (Replaces: 9759243)			Immediately	$ 55.44
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
53	4449845		Support, Bracket		Appelez-nous	-
55	WPW10207689		Trim, Bottom (black)   (Replaces: 8303583)				$ 205.84
55	WPW10207689		Trim, Bottom (white)   (Replaces: 8303584)				$ 205.84
55	WPW10207689		Trim, Bottom (biscuit)   (Replaces: 8303585)				$ 205.84
55	8303582		Trim, Bottom (stainless)		Appelez-nous	-
	4450365		Insulation, Back				$ 70.95
	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
