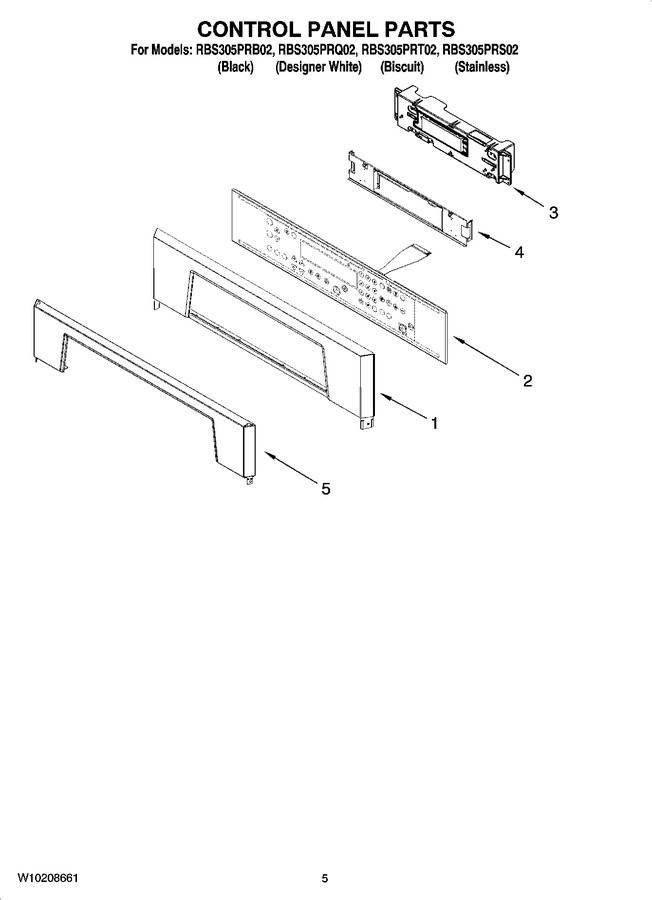

04 - Control Panel Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8302848 | Assembly, Control Panel (black) (Replaces: 8302848) |
|
$ 314.81 | |||||
| 1 | 8302849 | Assembly, Control Panel (white) |
|
$ 117.72 | |||||
| 1 | 8302850 | Assembly, Control Panel (biscuit) |
|
$ 112.28 | |||||
| 2 | 8304269 | Membrane Switch (black) |
|
$ 212.32 | |||||
| 2 | WP8304270 | Membrane Switch (white) (Replaces: 8304270) |
|
$ 471.84 | |||||
| 2 | 8304271 | Membrane Switch (biscuit) |
|
- | |||||
| 3 | 8303885 | Microcomputer |
|
- | |||||
| 4 | W10153086 | Backer, Control Panel |
|
- | |||||
| 5 | W10166944 | Trim, Control Panel (stainless Model Only) |
|
- |
