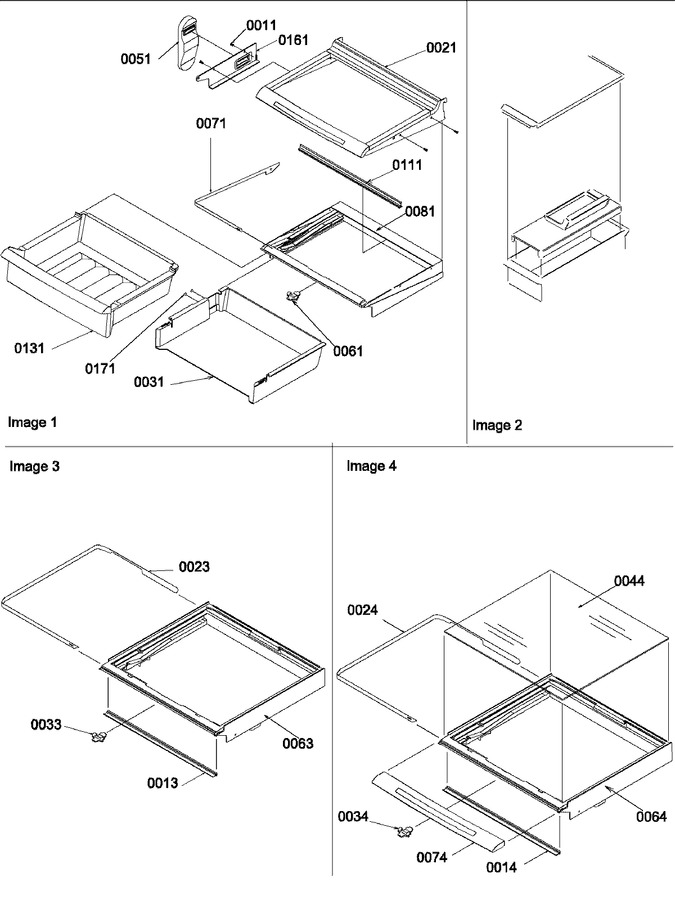

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0213129		Screw		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
21	10809606		Shelf, Full Stat		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10882701		Band, Crisper		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
31	10784001		Sleeve,deli		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
44	Y10370066		Glass, Shelf		Appelez-nous	-
51	10872701		Gasket, Deli		Appelez-nous	-
52	10310901		Tray, Butter		Appelez-nous	-
61	10852501		Slide, Crisper/deli		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
71	10986401		Band, Deli		Appelez-nous	-
74	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783803		Frame, Deli		Appelez-nous	-
111	10876302		Director-deli		Appelez-nous	-
121	10873802		Extr, Rear Deli		Appelez-nous	-
131	10784201		Pan, Deli		Appelez-nous	-
161	10872601		Manifold, Deli		Appelez-nous	-
171	M0051701		Pad-bumper		Appelez-nous	-
