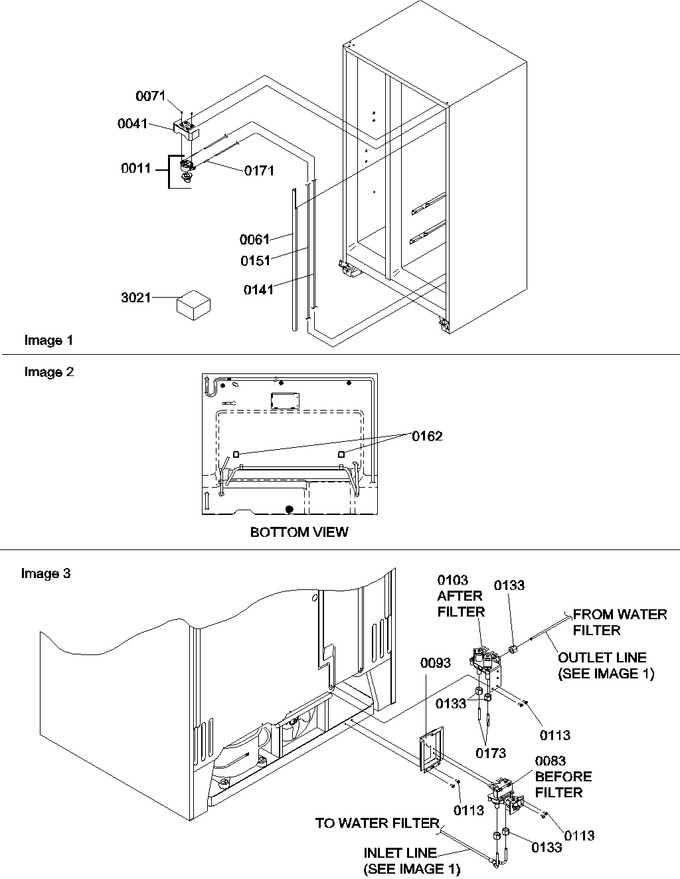

14 - Water Filter Assy & Water Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0000009		Assy, Head/bypass   (Replaces: 12319903)				$ 125.93
41	12445402		Cover, Water Filter-e Ct		Appelez-nous	-
61	12421801		Cover, Waterline		Appelez-nous	-
71	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
83	WP12544001		Valve, Water   (Replaces: 12313403)			Immediately	$ 262.43
93	12236001		Plate-water Valve		Appelez-nous	-
103	WP12544101		Valve, Secondary Water   (Replaces: 12313404)				$ 232.92
113	681390		Screw   (Replaces: M0251015)				$ 13.71
133	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
141	WP12544001		Valve See Letter F889-b   (Replaces: Y12445301)			Immediately	$ 262.43
151	12319001		Line,filter Outlet To I/m 110``		Appelez-nous	-
162	M0104102		Clip, Cord				$ 8.10
171	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
173	A1055105		Spring, Anti Kink		Appelez-nous	-
302	12388401		Net Single Amana Water Filter		Appelez-nous	-
