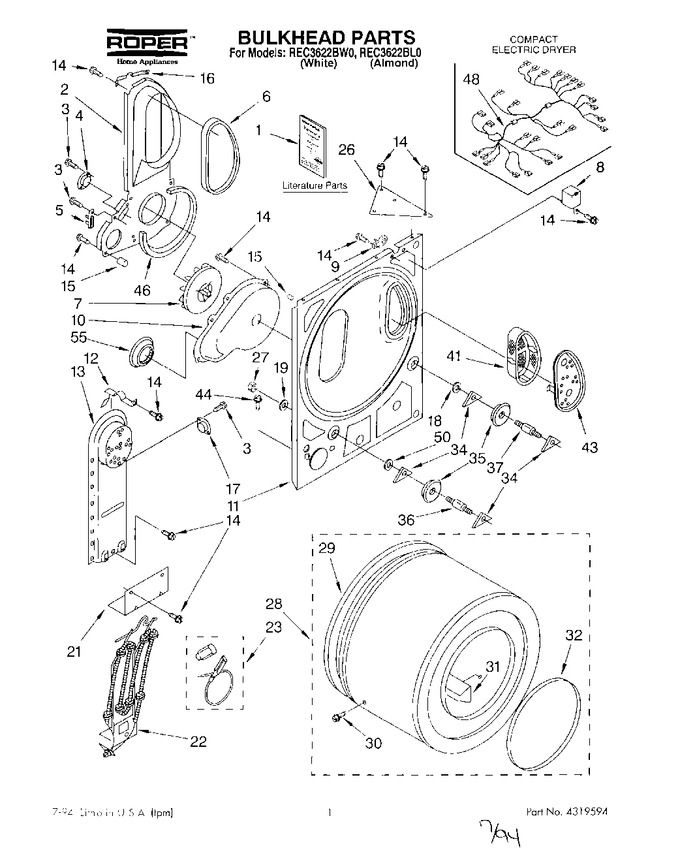

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9830899 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 1 | LIT9830930 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT9830513 | Literature Parts (label, Operating Instructions) |
|
- | |||||
| 1 | LIT9830492 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | 9830484 | Air Duct Assembly |
|
- | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 4 | WP3398128 | Thermostat, Internal Bias (Replaces: 3398128) |
|
Immediately | $ 139.29 | ||||
| 5 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 6 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 7 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 136.69 | ||||
| 8 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 9 | 279872 | Resistor (Replaces: 3388706) |
|
$ 78.69 | |||||
| 10 | 696419 | Scroll, Fan |
|
$ 143.66 | |||||
| 11 | 279848 | Bulkhead (Replaces: 4319701) |
|
$ 364.78 | |||||
| 12 | 279771 | Clip (Replaces: 4319315) |
|
$ 15.05 | |||||
| 13 | 4319438 | Box, Heater |
|
- | |||||
| 14 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- | |||||
| 16 | 345396 | Clip (Replaces: 9830393) |
|
- | |||||
| 17 | 696818 | Thermostat, 200~f (93.3~c) |
|
$ 39.82 | |||||
| 18 | 339492 | Washer, Support |
|
- | |||||
| 19 | 4319307 | Washer, Support |
|
- | |||||
| 21 | 4319395 | Reflector, Heat |
|
- | |||||
| 22 | 3398169 | Element, Heater |
|
- | |||||
| 23 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 26 | 345325 | Gusset (2) (Replaces: 4319636) |
|
- | |||||
| 27 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 28 | 3391834 | Drum Assembly (Replaces: 4319388) |
|
$ 372.51 | |||||
| 29 | 279735 | Seal, Rear (Replaces: 9830197) |
|
Immediately | $ 66.71 | ||||
| 30 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 31 | W11778255 | Baffle, Drum (3) (Replaces: 4319389) |
|
Immediately | $ 41.37 | ||||
| 32 | WP3394508 | Bearing, Ring (Replaces: 3394508) |
|
$ 131.86 | |||||
| 34 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 35 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 36 | WPW10359270 | Shaft, L.h. (Replaces: 4319306) |
|
Immediately | $ 72.71 | ||||
| 37 | WPW10359269 | Shaft, R.h. (Replaces: 4319304) |
|
Immediately | $ 47.30 | ||||
| 41 | W10828351 | Screen, Lint (Replaces: 348399) |
|
Immediately | $ 56.24 | ||||
| 43 | W10828351 | Cover, Lint Screen (Replaces: 685273) |
|
Immediately | $ 56.24 | ||||
| 44 | WP3390631 | Screw (4) (Replaces: 342202) |
|
$ 8.25 | |||||
| 46 | 9830394 | Seal |
|
- | |||||
| 48 | 9830908 | Harness, Wiring |
|
- | |||||
| 50 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 55 | 978883 | Almond (uncut) |
|
- | |||||
| 55 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 55 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 55 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 55 | 350941 | Leveler (thinner) |
|
- | |||||
| 55 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 55 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 55 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 55 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 |
