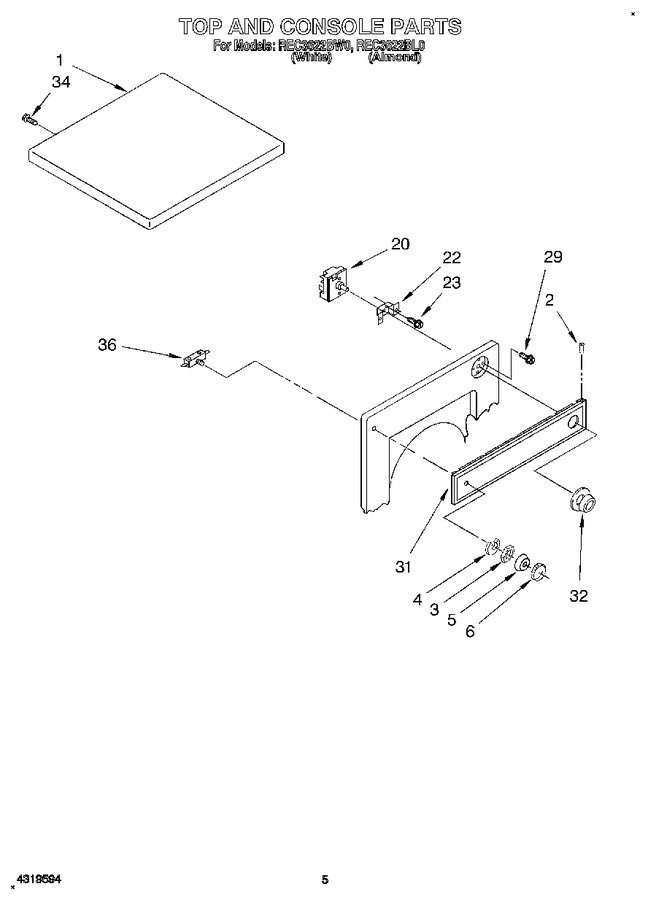

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345703		Top (white)   (Replaces: 4319377)				$ 261.58
1	4319405		Top (almond)		Appelez-nous	-
2	307563		Rivet, Pop		Appelez-nous	-
3	9831122		Nut, Hex		Appelez-nous	-
4	688193		Lockwasher		Appelez-nous	-
5	688825		Ring, Trim		Appelez-nous	-
6	688041		Nut, Knurled		Appelez-nous	-
20	WP8563882		Timer, 60 Hz.   (Replaces: 9831045)				$ 382.32
22	348171		Bracket, Timer   (Replaces: 4319376)		Appelez-nous	-
23	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
31	9831132		Panel, Control		Appelez-nous	-
32	9830902		Timer Knob & Dial		Appelez-nous	-
34	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
36	689038		Switch, Push-to-start		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
