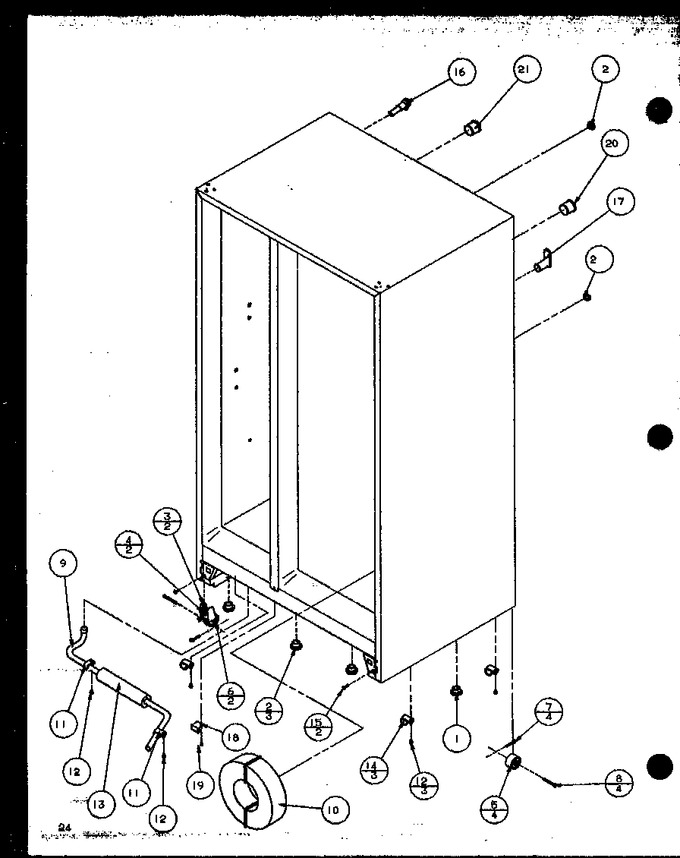

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 47.85
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	D7748501		Drain Tube		Appelez-nous	-
10	D7787801		Tank, Coil Water		Appelez-nous	-
11	M0102303		Clamp		Appelez-nous	-
12	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
13	A0329814		Tubing Insulation By Inch		Appelez-nous	-
14	WP488366		Clamp Tube   (Replaces: M0102330)				$ 11.92
15	M0204339		Screw Bolt K		Appelez-nous	-
16	B8318803		Fill Tube Assy		Appelez-nous	-
17	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
18	C8985801		Bracket, Retainer		Appelez-nous	-
19	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
20	10187501		Tunnel Wire		Appelez-nous	-
21	10187601		Tunnel Wire		Appelez-nous	-
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
