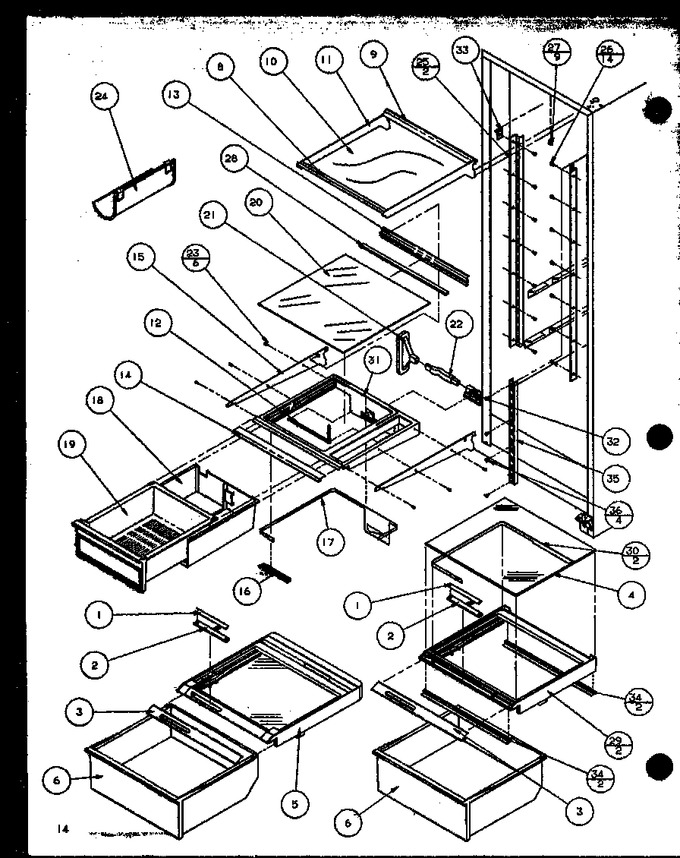

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10199906		Insert Crisper Slide		Appelez-nous	-
2	10289903		Slide Crisper Control		Appelez-nous	-
3	D7616678		Trim, Crisper Front		Appelez-nous	-
4	10036072		Glass Crisper Top		Appelez-nous	-
5	D7421275		Glass Crisper Top		Appelez-nous	-
6	D7782124		Crisper Pan		Appelez-nous	-
8	10049924		Trim, Front Shelf		Appelez-nous	-
8	10049923		Trim, Shelf (front)		Appelez-nous	-
9	C8913613		Trim Rear Shelf		Appelez-nous	-
9	C8913608		Trim		Appelez-nous	-
10	10036061		Glass Shelf		Appelez-nous	-
10	10036070		Glass, Shelf		Appelez-nous	-
11	D7871014		Frame Cant. Shelf		Appelez-nous	-
11	D7871012		Frame Cont. Shelf		Appelez-nous	-
12	A3030353		Gasket		Appelez-nous	-
13	C8990405		Trim, Rear		Appelez-nous	-
14	10049922		Trim, Shelf Frt		Appelez-nous	-
15	D7862933		Side Rail (white)		Appelez-nous	-
15	D7862932		Side Rail, M.k., L.h.		Appelez-nous	-
16	D7859402		Slide-mk Control		Appelez-nous	-
17	D7859504		Band M.k. Control		Appelez-nous	-
18	D7698112		Sleeve M.k. V		Appelez-nous	-
19	D7698333		Pan-meat		Appelez-nous	-
20	10036071		Glass, Mk Shelf		Appelez-nous	-
21	D7873601		Grommet, Mk		Appelez-nous	-
22	D7869001		Xduct M.k. Air		Appelez-nous	-
23	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
24	D7547615		Rack Bottle V		Appelez-nous	-
25	D7789807		Ladder Cantilever		Appelez-nous	-
26	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
27	M0580007		Grommet, Screw		Appelez-nous	-
28	10043102		Ext. Rear Glass		Appelez-nous	-
29	D7853208		Frame		Appelez-nous	-
29	D7853209		Frame		Appelez-nous	-
30	D7859606		Band M.k. Control		Appelez-nous	-
31	D7857005		Frame, M.k		Appelez-nous	-
32	D7869101		Ext. Air Duct		Appelez-nous	-
33	C8992301		Bracket		Appelez-nous	-
34	D7718404		Seal, Crisper Rear		Appelez-nous	-
34	D7718403		Seal, Crisper Front		Appelez-nous	-
35	D7599003		Ladder, Center		Appelez-nous	-
36	M0230923		Screw		Appelez-nous	-
NI	10279102		Glass, Half Shelf Assembly		Appelez-nous	-
NI	R0179196		Crisper Frame Assy		Appelez-nous	-
NI	10279101		Assy, Split Shelf		Appelez-nous	-
NI	R0179195		Crisper Frame Assy		Appelez-nous	-
