SELECT A DIAGRAM

01 - Back Unit


02 - Evap And Air Handling


03 - Factory Installed Ice Maker


04 - Fz Door


05 - Fz Door

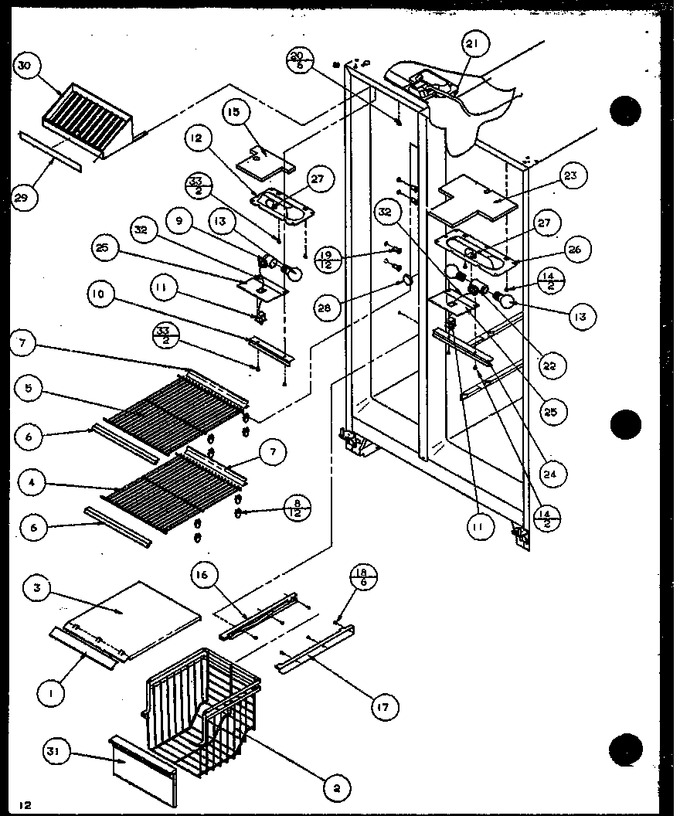

06 - Fz Shelving And Ref Light


07 - Ice Maker


08 - Machine Compartment


09 - Ref Door


10 - Ref Door


11 - Ref Shelving And Drawers


12 - Ref/fz Controls And Cabinet Parts


13 - Rollers And Cabinet Back


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616625		Trim		Appelez-nous	-
2	D7820802		Basket, Frz		Appelez-nous	-
3	D7781506		Freezer Shelf Pnt		Appelez-nous	-
4	D7788310		Shelf, Frz		Appelez-nous	-
5	D7788309		Shelf, Frz		Appelez-nous	-
6	C8913519		Trim		Appelez-nous	-
7	C8913609		Trim		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	C8973403		Socket-light		Appelez-nous	-
10	10014708		Shield, Light		Appelez-nous	-
11	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
12	D7760102		Housing Frz Light		Appelez-nous	-
13	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
14	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
15	C8976301		Barrier		Appelez-nous	-
16	D7839901		Glide, Frezer. L.h.		Appelez-nous	-
17	D7839902		Glide, Fz, R.h.		Appelez-nous	-
18	M0213529		Screw		Appelez-nous	-
19	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
20	M0580007		Grommet, Screw		Appelez-nous	-
21	D7771301		Harness, Outer Liner		Appelez-nous	-
22	D7808602		Socket, Dual Lamp		Appelez-nous	-
23	C8778301		Insulation		Appelez-nous	-
24	10014707		Shield, Light		Appelez-nous	-
25	D7297603		Cover, Light Sw		Appelez-nous	-
26	D7716404		Housing-ref Light		Appelez-nous	-
27	B5733302		Clip, Ground		Appelez-nous	-
28	A3069103		Plug		Appelez-nous	-
29	C8986105		Insert, Juice Rack		Appelez-nous	-
30	D7839701		Rack, Juice V		Appelez-nous	-
31	D7820708		Front Basket		Appelez-nous	-
32	B5781002		Jumper Wire		Appelez-nous	-
33	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30

    View Diagram in Separate Window       Print Part List
