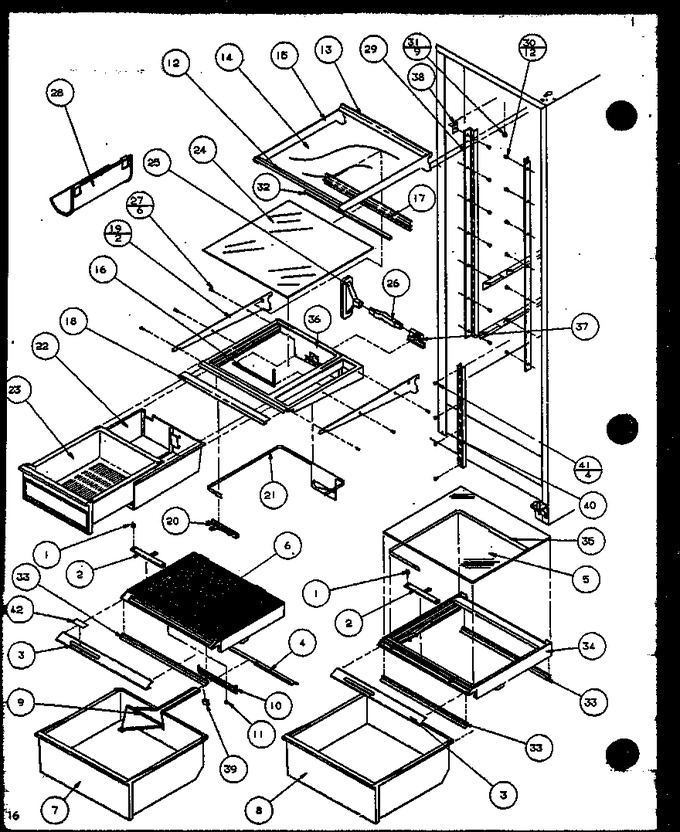

11 - Ref Shelving And Drawers


12 - Ref/fz Controls And Cabinet Parts


13 - Rollers And Cabinet Back


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038403		Knob, Crisper Control		Appelez-nous	-
2	D7860603		Slide		Appelez-nous	-
3	D7616630		Trim		Appelez-nous	-
4	D7764106		Damper, Humidity Control		Appelez-nous	-
5	10036010		Glass Crisper Top		Appelez-nous	-
6	D7856904		Top Crisper		Appelez-nous	-
7	D7817210		Pan-fruit		Appelez-nous	-
8	D7782015		Crisper Pan		Appelez-nous	-
9	D7782205		Slide, Arm Crisper Control		Appelez-nous	-
10	D7807603		Support, Slide		Appelez-nous	-
11	M0230017		Screw,tc		Appelez-nous	-
12	C8913540		Trim-front Shelf		Appelez-nous	-
12	C8913518		Trim		Appelez-nous	-
13	C8913608		Trim		Appelez-nous	-
13	C8913613		Trim Rear Shelf		Appelez-nous	-
14	10036014		Glass Shelf		Appelez-nous	-
14	10036008		Glass Shelf		Appelez-nous	-
15	D7871007		Frame-cantilever Full Shelf		Appelez-nous	-
15	D7871013		Frame Cantilever		Appelez-nous	-
16	A3030349		Gasket		Appelez-nous	-
17	C8990405		Trim, Rear		Appelez-nous	-
18	C8913520		Trim		Appelez-nous	-
19	D7862960		Side Rail		Appelez-nous	-
19	D7862961		Side Rail		Appelez-nous	-
20	D7859402		Slide-mk Control		Appelez-nous	-
21	D7859504		Band M.k. Control		Appelez-nous	-
22	D7817906		Sleeve M.k. A		Appelez-nous	-
23	D7814009		Pan-meat		Appelez-nous	-
24	10036009		Glass Shelf M K		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	D7547612		Rack, Bottle		Appelez-nous	-
29	D7789806		Ladder Cantilever		Appelez-nous	-
29	D7789805		Ladder Cantilever		Appelez-nous	-
30	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
31	M0580007		Grommet, Screw		Appelez-nous	-
32	10043102		Ext. Rear Glass		Appelez-nous	-
33	D7718403		Seal, Crisper Front		Appelez-nous	-
33	D7718404		Seal, Crisper Rear		Appelez-nous	-
34	D7853203		Frame		Appelez-nous	-
35	D7859604		Band M.k. Control		Appelez-nous	-
36	D7857004		Frame, Mk		Appelez-nous	-
37	D7869101		Ext. Air Duct		Appelez-nous	-
38	C8992301		Bracket		Appelez-nous	-
39	M0118102		Clip		Appelez-nous	-
40	D7599003		Ladder, Center		Appelez-nous	-
41	M0230923		Screw		Appelez-nous	-
42	10151001		Insert-crisper Top		Appelez-nous	-
NI	D7871820		Glass Shelf Assy		Appelez-nous	-
NI	R0179149		Crisper Top Assy		Appelez-nous	-
NI	D7871818		Glass, Full Shelf Assembly		Appelez-nous	-
NI	R0179148		Glass Crisper Top Assy		Appelez-nous	-
