View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

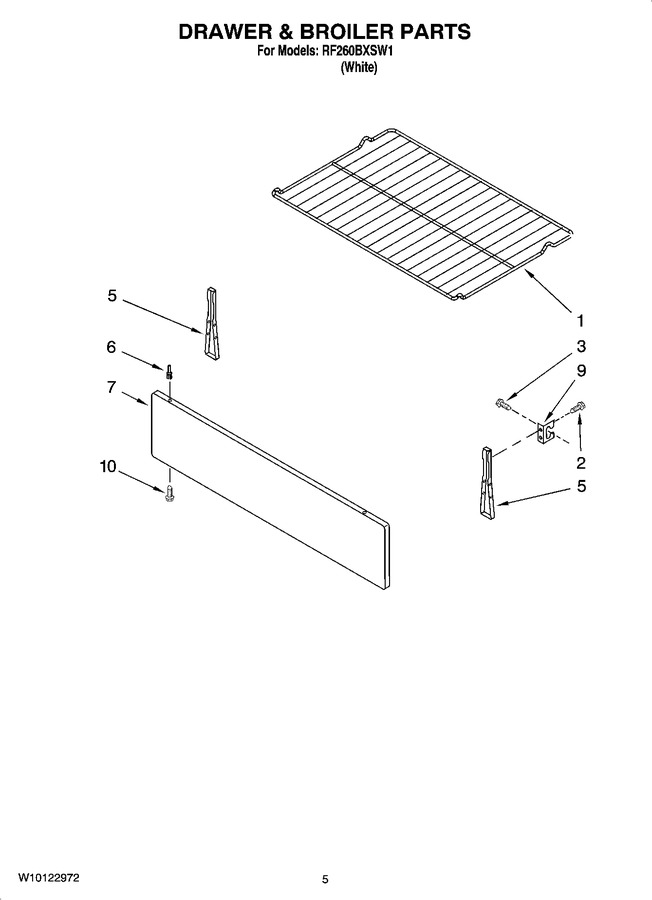

04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | 3196265 | Screw |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer(2) (Replaces: 9758200) |
|
Immediately | $ 88.95 | ||||
| 6 | WP3196814 | Rivet, Push (2) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 7 | 8272943 | Panel, Drawer Front |
|
$ 68.67 | |||||
| 9 | 8272937 | Bracket, Toe Panel (2) |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 |
