01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts

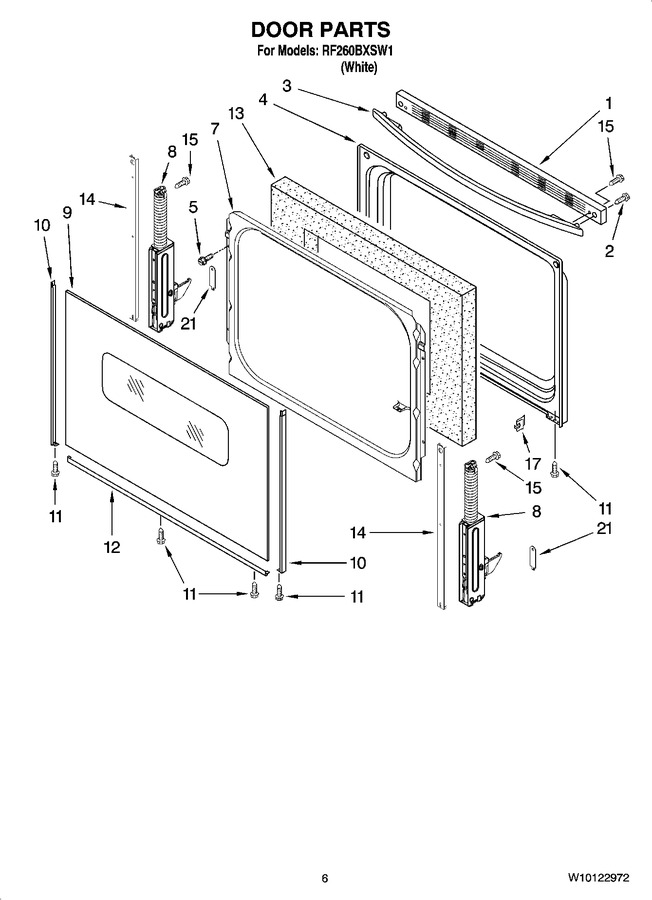

05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9762391		Trim, Top   (Replaces: 9762391)				$ 208.97
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	9761983		Handle, Door				$ 116.42
4	9761342		Liner, Door		Appelez-nous	-
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
7	W11699790		Retainer, Insul.   (Replaces: 9761504)		Appelez-nous	-
8	W10347465		Hinge, Door (2)   (Replaces: 9761494)				$ 120.38
9	3195610		Glass, Outer		Appelez-nous	-
10	W10761018		Trim, Side (left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
10	W10761014		Trim, Side (right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
12	WP8523177		Trim, Lower   (Replaces: 8523177)			Immediately	$ 165.86
13	WPW10278991		Insulation   (Replaces: 8272618)			Immediately	$ 101.37
14	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
17	3196025		Clip, Glass (6)				$ 20.10
21	9761517		Clip, Door Mntg (2)				$ 48.11
	814381		Pin Kit-dr Removal				$ 11.28
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 54.01
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
	W10251772		Harness, Wire (main)   (Replaces: W10114335)		Appelez-nous	-
	W11172524		Harness, Wire (sensor)   (Replaces: W10084660)				$ 217.19
	W11396691		Harness, Wire (surface Unit)   (Replaces: 9761476)				$ 189.76
	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
	313660		Clip, Wire Ground		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	WP308605		Relief, Strain   (Replaces: 308605)				$ 11.76
	WP3196174		Screw (grnd Wire/back)   (Replaces: 3196174)			Immediately	$ 8.44
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	3191048		Cleaner, Glass		Appelez-nous	-
	4396923		Pan - Broiler			Immediately	$ 60.71
