01 - Cooktop


02 - Oven


03 - Oven Door And Drawer


04 - Backguard, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

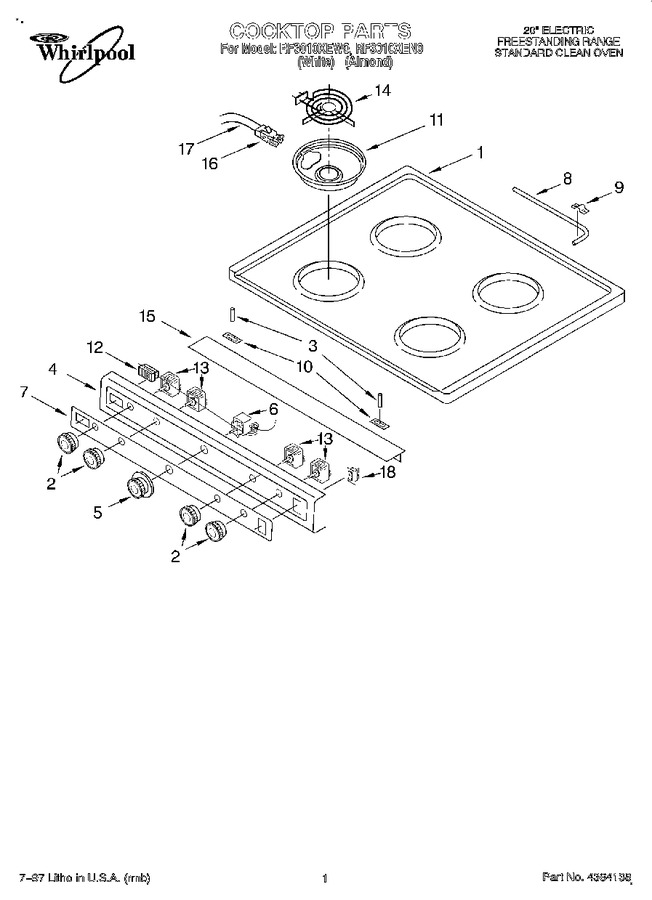

1	4364353		Cooktop (almond)		Appelez-nous	-
1	4364352		Cooktop (white)		Appelez-nous	-
2	4364346		Knob, Burner (4)		Appelez-nous	-
3	4364157		Strikepin, Cooktop (includes Nut)		Appelez-nous	-
4	4364366		Panel, Manifold (includes No.7)		Appelez-nous	-
5	4364347		Knob, Thermostat		Appelez-nous	-
6	4364181		Thermostat				$ 197.66
6	WP313808		Screw, 6-32 X 3/8   (Replaces: 4364249)				$ 7.47
7	4364111		Decal, Manifold		Appelez-nous	-
8	4364217		Rod, Support		Appelez-nous	-
9	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
9	4364218		Clip, Rod Support		Appelez-nous	-
10	4364158		Catch, Strike Pin		Appelez-nous	-
11	WPW10196406		Bowl, Chrome (6`` (3))   (Replaces: 4364193)			Immediately	$ 12.42
11	WPW10196405		Bowl, Chrome (8``(1))   (Replaces: 4364192)			Immediately	$ 15.56
12	4364345		Indicator, Surf/ov		Appelez-nous	-
13	WPW10197681		Switch, Infinite (use W/8`` Element)   (Replaces: 4364180)			Immediately	$ 150.89
13	4364179		Switch, Infinite (use W/6`` Element)				$ 73.94
14	WPW10345407		Element, Surface (6`` (3))   (Replaces: 4364174)			Immediately	$ 148.88
14	4364175		Element, Surface (8`` (1))		Appelez-nous	-
15	4364354		Cover, Switch		Appelez-nous	-
15	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
16	4364043		Screw, 6-32 X 1/4		Appelez-nous	-
16	4364177		Brkt, Receptacle		Appelez-nous	-
16	330031		Receptacle, Elmnt (includes Wires)   (Replaces: 4364178)			Immediately	$ 17.93
17	4364189		Wire, Element (yellow (rt. Front))		Appelez-nous	-
17	4364190		Wire, Element (blue (left Rear))		Appelez-nous	-
17	4364191		Wire, Element (black (rt. Rear))		Appelez-nous	-
17	4364188		Wire, Element (red (left Front))		Appelez-nous	-
18	4364351		Switch, Oven Light		Appelez-nous	-
