SELECT A DIAGRAM

01 - Cooktop


02 - Oven


03 - Oven Door And Drawer


04 - Backguard, Literature

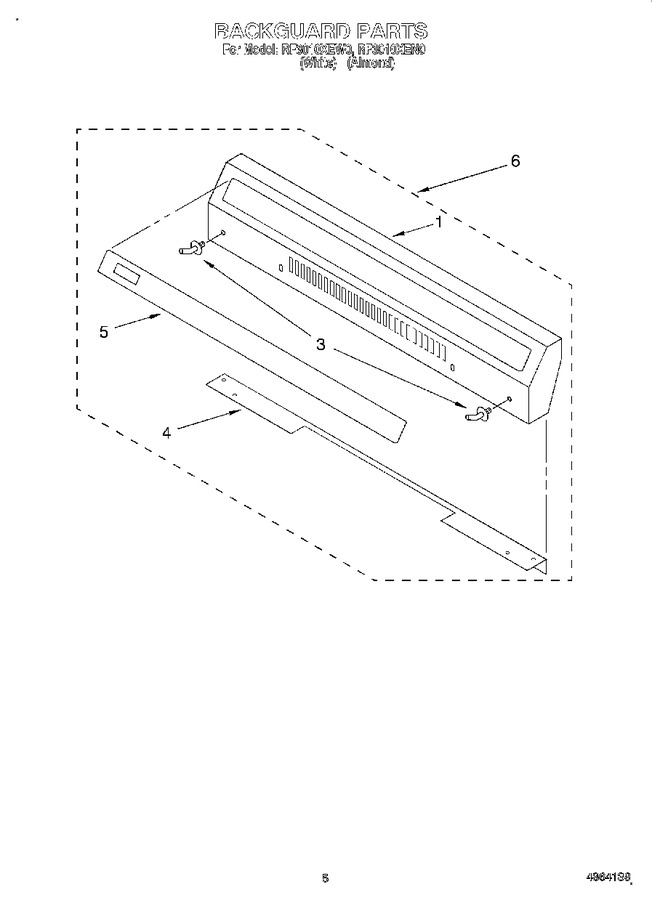

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364377		Backguard (includes No.5) (almond)		Appelez-nous	-
1	4364370		Backguard (includes No.5) (white)		Appelez-nous	-
3	4364102		Hinge Pin (2)		Appelez-nous	-
4	4364369		Support, Backguard		Appelez-nous	-
5	4364106		Overlay, Backguard		Appelez-nous	-
6	4364378		Backguard, Complete (almond)		Appelez-nous	-
6	4364222		Harness, Wire (14 Ga. Blk Jumpr)		Appelez-nous	-
6	4364119		Backguard, Complete (white)		Appelez-nous	-
6	4364225		Wire, Black Bake		Appelez-nous	-
6	4364226		Wire, Yellow Brlr		Appelez-nous	-
6	4364227		Wire, Blue Switch		Appelez-nous	-
6	4364367		Wire, Orange Ind.		Appelez-nous	-
6	4364368		Wire, Red Ind.		Appelez-nous	-
6	4364224		Harness, Wire (14 Ga Red Jumper)		Appelez-nous	-
6	W11233072		Backguard, Complete (screw, 8 X 1/2)   (Replaces: 4364121)			Immediately	$ 13.25
6	4364046		Backguard, Complete (wing Nut, 10 X 24)		Appelez-nous	-
6	4364095		Wire Bushing		Appelez-nous	-
	LIT4364040		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
