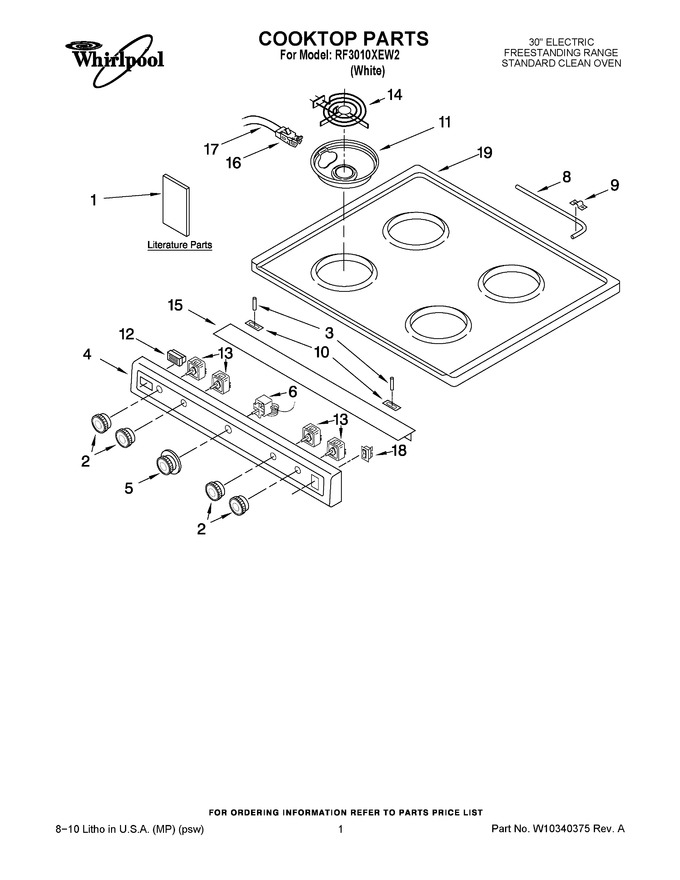

01 - Cooktop Parts


02 - Oven Parts


03 - Oven Door And Drawer Parts


04 - Backguard Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364408		Wiring Diagram		Appelez-nous	-
1	4364040		Use & Care Guide		Appelez-nous	-
2	W10347847		Knob, Burner		Appelez-nous	-
3	4364157		Strikepin, Cooktop (includes Nut)		Appelez-nous	-
4	4364431		Panel, Manifold (includes Decal)		Appelez-nous	-
5	W10347848		Knob, Thermostat		Appelez-nous	-
6	WP313808		Screw, 6-32 X 3/8   (Replaces: 4364249)				$ 7.47
6	8190613		Thermostat				$ 213.77
8	4364217		Rod, Support		Appelez-nous	-
9	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
9	4364218		Clip, Rod Support		Appelez-nous	-
10	4364158		Catch, Strikepin		Appelez-nous	-
11	WPW10196406		Bowl, Chrome (6``)   (Replaces: 4364193)			Immediately	$ 12.42
11	WPW10196405		Bowl, Chrome (8``)   (Replaces: 4364192)			Immediately	$ 15.56
12	4364345		Indicator, Surf/ov		Appelez-nous	-
13	WPW10197681		Switch, Infinite (use W/8`` Element)   (Replaces: W10197681)			Immediately	$ 150.89
13	W10197679		Switch, Infinite (use W/6`` Element)			Immediately	$ 177.29
13	W10197682		Switch, Infinite (screw)		Appelez-nous	-
14	WPW10345407		Element, Surface (6``)   (Replaces: 4364174)			Immediately	$ 148.88
14	4364175		Element, Surface (8``)		Appelez-nous	-
15	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
15	4364354		Cover, Switch		Appelez-nous	-
16	330031		Receptacle, Elmnt (includes Wires)   (Replaces: 4364178)			Immediately	$ 17.93
16	4364043		Screw, 6-32 X 1/4		Appelez-nous	-
16	4364177		Brkt, Receptacle		Appelez-nous	-
17	4364190		Wire, Element (blue (left Rear))		Appelez-nous	-
17	4364188		Wire, Element (red (left Front))		Appelez-nous	-
17	4364189		Wire, Element (yellow (rt. Front))		Appelez-nous	-
17	4364191		Wire, Element (black (rt. Rear))		Appelez-nous	-
18	4364351		Switch, Oven Light		Appelez-nous	-
19	4364352		Cooktop (white)		Appelez-nous	-
