SELECT A DIAGRAM

01 - Cooktop Parts


02 - Oven Parts

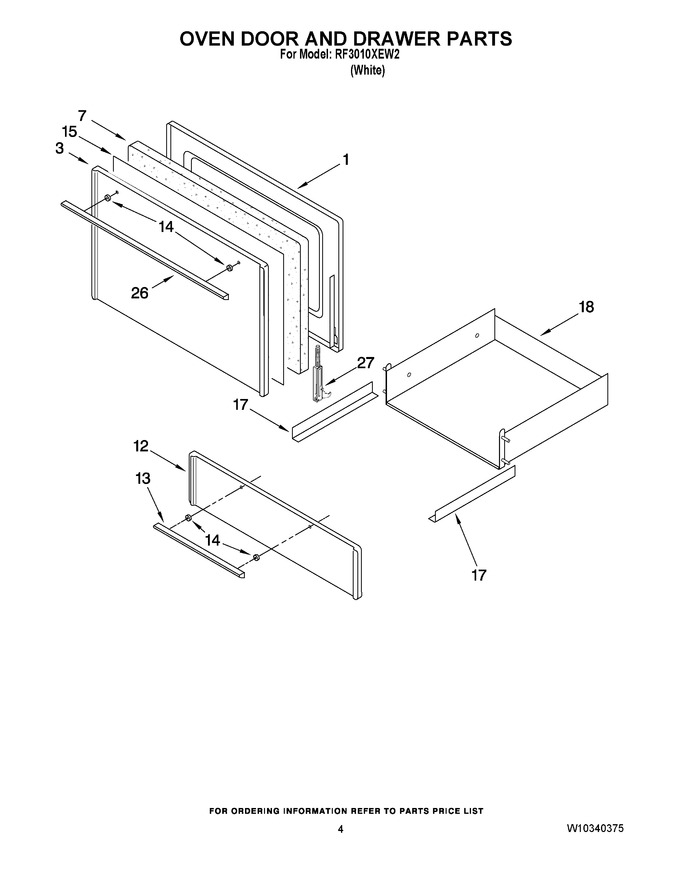

03 - Oven Door And Drawer Parts


04 - Backguard Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10161146		Liner, Door		Appelez-nous	-
3	W10161145		Panel, Oven Door (white)		Appelez-nous	-
7	4364470		Insulation, Door		Appelez-nous	-
12	4364361		Panel, Drawer (white)		Appelez-nous	-
13	4364054		Handle, Drawer		Appelez-nous	-
14	4364055		Spacer, Handle		Appelez-nous	-
14	4364057		Screw, 10-24 X 3/8		Appelez-nous	-
15	W10161147		Inner Door Panel		Appelez-nous	-
17	4364363		Broiler Drawer (left)				$ 45.32
17	4364364		Broiler Drawer (right)				$ 45.32
18	4364365		Body, Drawer		Appelez-nous	-
26	4364070		Handle, Oven Door		Appelez-nous	-
26	4364171		Screw		Appelez-nous	-
27	W10137326		Hinge, Oven Door (right)				$ 38.64
27	W10137325		Hinge, Oven Door (left)		Appelez-nous	-
