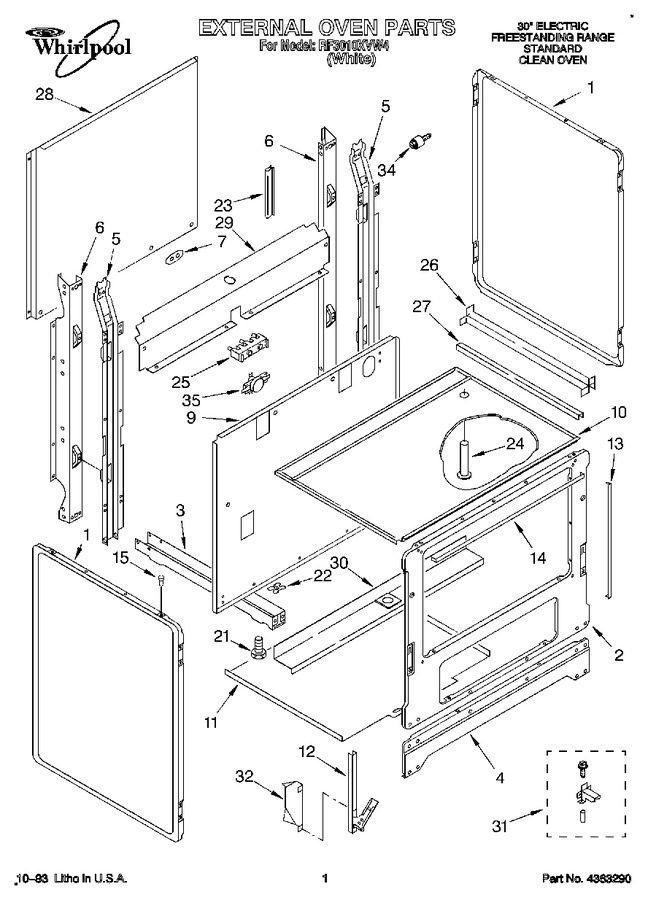

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363024		Panel, Side (2) (white)		Appelez-nous	-
1	WP308685		Panel, Side (2) (screw, 10-12 X 1/2 (10))   (Replaces: 4320407)			Immediately	$ 7.08
2	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.08
2	4321257		Frame, Front		Appelez-nous	-
3	4363194		Rail, Base (2)		Appelez-nous	-
4	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4320407)			Immediately	$ 7.08
4	4157006		Base, Front		Appelez-nous	-
5	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4320407)			Immediately	$ 7.08
5	4157011		Support, Main (2)		Appelez-nous	-
6	4320661		Screw, 10-12 X 1/2 (2)		Appelez-nous	-
6	4315382		Support, Rear (2)		Appelez-nous	-
7	4320523		Plate, Conduit		Appelez-nous	-
9	WP308685		Screw, 10-12 X 1/2 (10)   (Replaces: 4320407)			Immediately	$ 7.08
9	4315493		Panel, Rear		Appelez-nous	-
10	WP308685		Screw, 10-12 X 1/2 (10)   (Replaces: 4320407)			Immediately	$ 7.08
10	4320679		Burner Box		Appelez-nous	-
11	4315490		Retainer, Insulation		Appelez-nous	-
12	4320567		Screw, 10-24 X 5/16 (2)		Appelez-nous	-
12	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4320407)			Immediately	$ 7.08
12	4157022		Hinge, Door (2)		Appelez-nous	-
13	4315334		Seal, Door (2) (side)		Appelez-nous	-
14	4315335		Seal, Door (top)		Appelez-nous	-
15	4157027		Bumper, Cooktop (2)		Appelez-nous	-
21	4157161		Leg, Leveler (4)		Appelez-nous	-
22	4157332		Nut (4)		Appelez-nous	-
23	4157132		Safe Edge		Appelez-nous	-
24	4314952		Tube, Vent		Appelez-nous	-
25	WP8203546		Block, Terminal   (Replaces: 4157955)			Immediately	$ 27.12
26	4363171		Channel, Wire		Appelez-nous	-
27	4157965		Support		Appelez-nous	-
28	4314943		Cover, Rear		Appelez-nous	-
29	4363286		Cover, Rear		Appelez-nous	-
30	4320496		Shield, Wire		Appelez-nous	-
31	4363057		Bracket, Anti Tip		Appelez-nous	-
32	4157325		Shield, Insulation		Appelez-nous	-
34	4315409		Screw, 6-32 X 7/8		Appelez-nous	-
34	4315408		Stud, Locator		Appelez-nous	-
35	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
35	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
35	4179130		Disc, Thermo		Appelez-nous	-
35	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
35	CERAMABRYTE		Polishing Creme, Cooktop (20 Oz.)   (Replaces: 3184477)			Immediately	$ 9.95
	LIT4315037		Guide, Use & Care		Appelez-nous	-
	LIT677973		Manual, Range		Appelez-nous	-
	LIT313358		Guide, Cooking		Appelez-nous	-
	LIT4315038		Instuctions, Installation		Appelez-nous	-
