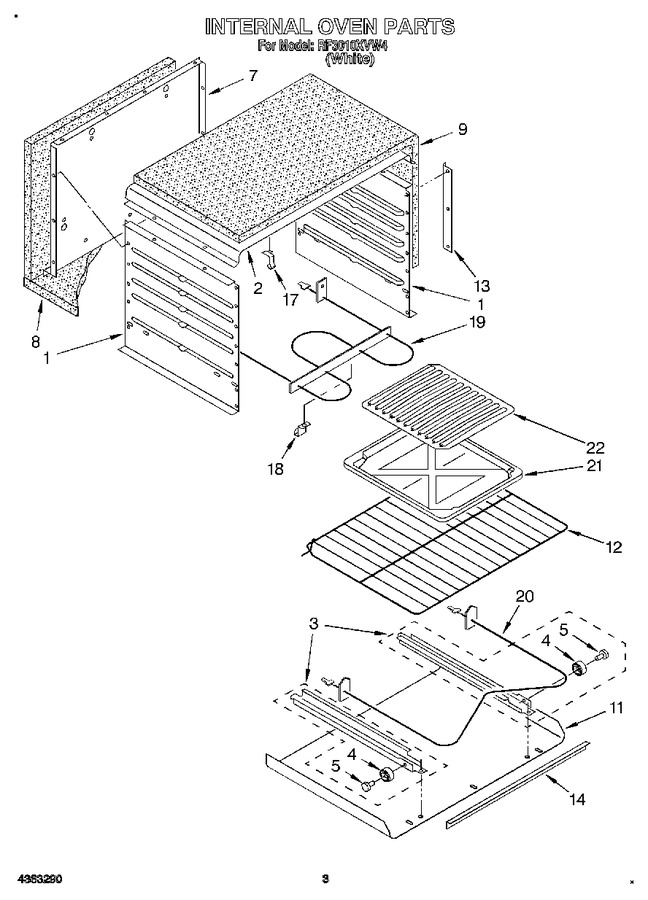

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4315753		Liner, Oven Side (2)		Appelez-nous	-
1	4320662		Screw, 10-12 X 5/8 (6)		Appelez-nous	-
2	4315043		Liner, Oven Top		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (7)   (Replaces: 4320407)			Immediately	$ 7.08
3	4320465		Track, Broiler (left Hand)		Appelez-nous	-
3	4320466		Track, Broiler (right Hand)		Appelez-nous	-
4	4315388		Roller (2)		Appelez-nous	-
5	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.08
5	4363050		Pin, Roller (2)		Appelez-nous	-
7	4315052		Backliner, Oven		Appelez-nous	-
7	WP308685		Screw, 10-12 X 1/2 (10)   (Replaces: 4320407)			Immediately	$ 7.08
8	WPW10208653		Insulation-back   (Replaces: 4157664)			Immediately	$ 54.98
9	4320508		Insulation, Wrap		Appelez-nous	-
11	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4320407)			Immediately	$ 7.08
11	4320773		Bottom, Oven		Appelez-nous	-
12	4320804		Rack, Oven		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	4315213		Support, Oven Bottom		Appelez-nous	-
14	4320662		Screw, 10-12 X 5/8		Appelez-nous	-
17	98005642		Clip, Thermo Bulb   (Replaces: 4157329)			Immediately	$ 78.37
18	4157967		Support, Broil Element		Appelez-nous	-
19	4157977		Element, Broiler		Appelez-nous	-
20	WP4314958		Element, Bake   (Replaces: 4314958)				$ 128.67
21	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 54.64
22	4315094		Grid, Broiler		Appelez-nous	-
