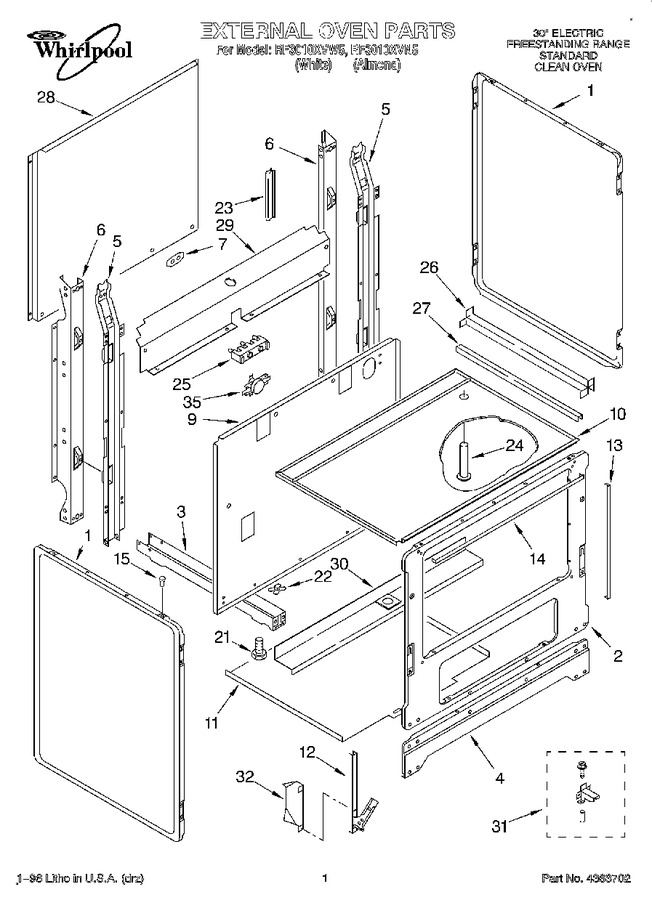

01 - External Oven, Lit/optional
02 - Internal Oven
03 - Oven Door And Broiler
04 - Cooktop And Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4363025 | Panel, Side (2) (almond) |
|
- | |||||
| 1 | 4363024 | Panel, Side (2) (white) |
|
- | |||||
| 2 | 4321257 | Frame, Front |
|
- | |||||
| 3 | 4157332 | Nut |
|
- | |||||
| 3 | 4363194 | Rail, Base (2) |
|
- | |||||
| 4 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 4 | 4157006 | Base, Front |
|
- | |||||
| 5 | 4157330 | Nut |
|
- | |||||
| 5 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 5 | 4157011 | Support, Main (2) |
|
- | |||||
| 6 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 6 | 4363237 | Screw |
|
- | |||||
| 6 | 4315382 | Support, Rear (2) |
|
- | |||||
| 7 | 4320523 | Plate, Conduit |
|
- | |||||
| 9 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 9 | 4315493 | Panel, Rear |
|
- | |||||
| 10 | 4320661 | Screw |
|
- | |||||
| 10 | 4314939 | Burner Box |
|
- | |||||
| 10 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 11 | 4315490 | Retainer, Insulation |
|
- | |||||
| 11 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 12 | 4320567 | Screw, 10-24 X 5/16 (2) |
|
- | |||||
| 12 | 4157022 | Hinge, Door (2) |
|
- | |||||
| 13 | 4315334 | Seal, Door (2) (side) |
|
- | |||||
| 14 | 4315335 | Seal, Door (top) |
|
- | |||||
| 15 | 4157027 | Bumper, Cooktop (2) |
|
- | |||||
| 21 | 4363195 | Leg, Leveler (4) |
|
- | |||||
| 22 | 4157332 | Nut (4) |
|
- | |||||
| 23 | 4157132 | Safe Edge |
|
- | |||||
| 24 | 4314952 | Tube, Vent |
|
- | |||||
| 25 | WP8203546 | Block, Terminal (Replaces: 4363438) |
|
Immediately | $ 27.12 | ||||
| 26 | 4363171 | Channel, Wire |
|
- | |||||
| 26 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 27 | 4157965 | Support, Wire |
|
- | |||||
| 28 | 4363437 | Cover, Rear |
|
- | |||||
| 29 | 4363286 | Cover, Rear |
|
- | |||||
| 29 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.08 | ||||
| 30 | 4320496 | Shield, Wire |
|
- | |||||
| 30 | 4315522 | Screw |
|
- | |||||
| 31 | 4363057 | Bracket, Anti Tip |
|
- | |||||
| 32 | 4363537 | Screw |
|
- | |||||
| 32 | 4157325 | Shield, Insulation |
|
- | |||||
| 35 | 4179130 | Disc, Thermo |
|
- | |||||
| 35 | CERAMABRYTE | Polishing Creme, Cooktop (20 Oz.) (Replaces: 3184477) |
|
Immediately | $ 9.95 | ||||
| 35 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 35 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 35 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| LIT4315038 | Instuctions, Installation |
|
- | ||||||
| LIT4363704 | Guide, Cooking |
|
- | ||||||
| LIT677973 | Manual, Range |
|
- | ||||||
| LIT4363705 | Diagram, Wiring |
|
- | ||||||
| LIT4315037 | Guide, Use & Care |
|
- |
