SELECT A DIAGRAM

01 - External Oven, Lit/optional


02 - Internal Oven

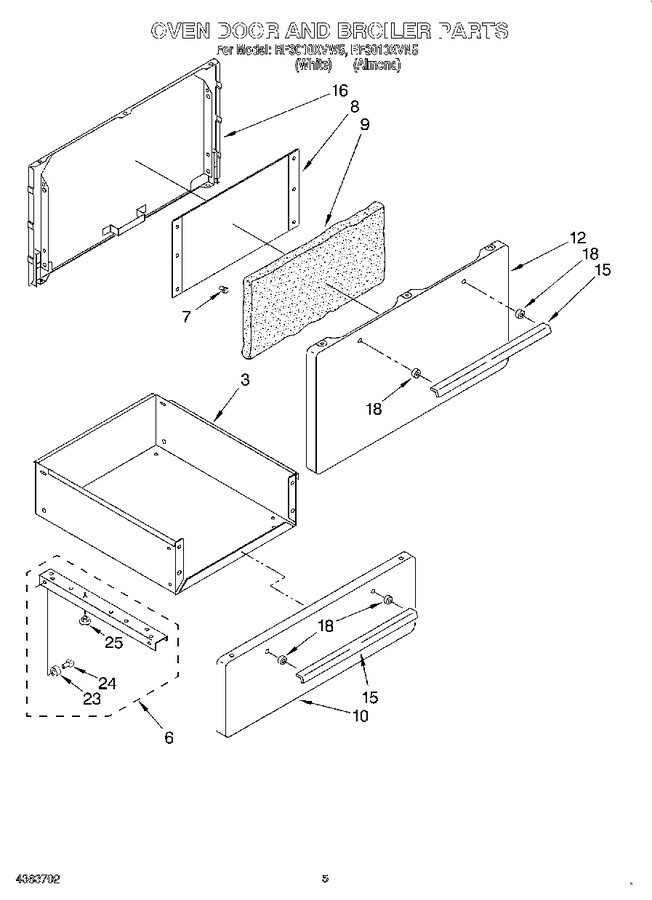

03 - Oven Door And Broiler


04 - Cooktop And Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	4363284		Drawer, Storage		Appelez-nous	-
6	WP308685		Track, Upper (screw)   (Replaces: 4320407)			Immediately	$ 7.08
6	4364024		Track, Upper (right Hand)				$ 74.85
6	4364023		Track, Upper (left Hand)		Appelez-nous	-
7	4157128		Bumper, Rubber (2)		Appelez-nous	-
8	WP681414		Screw, 10-12 X 1/2 (5)   (Replaces: 4157114)			Immediately	$ 7.62
8	4363287		Baffle, Oven Door		Appelez-nous	-
9	4363236		Insulation		Appelez-nous	-
10	4320527		Panel, Drawer (white)		Appelez-nous	-
10	WP308685		Panel, Drawer (screw)   (Replaces: 4320407)			Immediately	$ 7.08
10	4320528		Panel, Drawer (almond)		Appelez-nous	-
12	4363281		Panel, Oven Door (almond)		Appelez-nous	-
12	4320742		Panel, Oven Door (screw)		Appelez-nous	-
12	4363220		Panel, Oven Door (white)		Appelez-nous	-
15	4157040		Handle (2)		Appelez-nous	-
15	4320579		Screw, Handle 10-24 X 5/8 (4)		Appelez-nous	-
16	4363285		Liner, Oven Door		Appelez-nous	-
18	4157041		Spacer, Handle (4)		Appelez-nous	-
23	4315388		Roller (2)		Appelez-nous	-
24	4363050		Roller Pin (2)		Appelez-nous	-
25	4315387		Button, Glide (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
