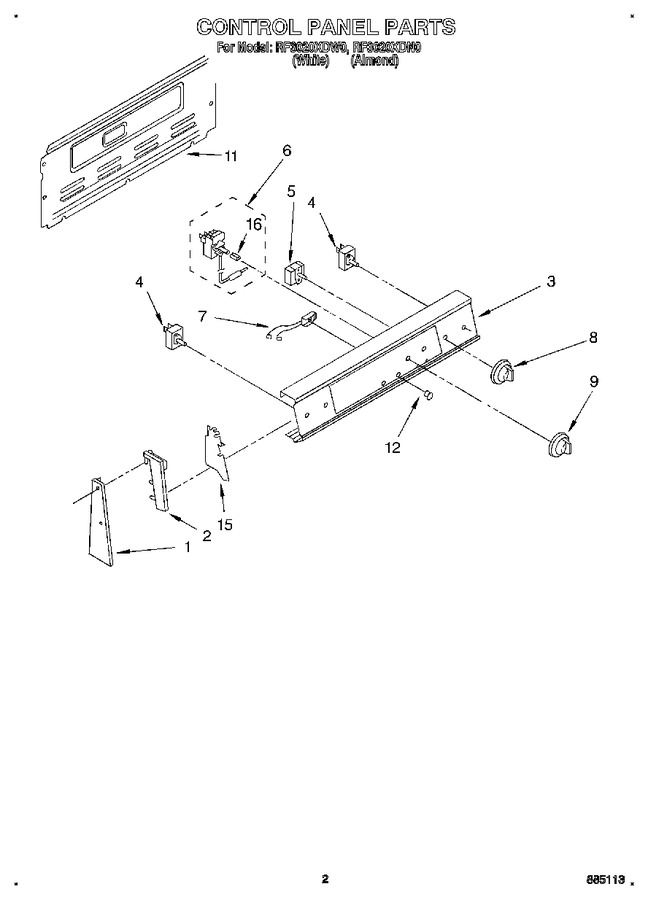

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	3187671		End Trim R.h.		Appelez-nous	-
1	3187672		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3187791		End Cap R.h.		Appelez-nous	-
2	3187792		End Cap L.h.		Appelez-nous	-
3	3188671		Panel, Control		Appelez-nous	-
3	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
4	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 3148953)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 3148951)			Immediately	$ 52.39
5	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
5	WP3188987		Switch, Selector (3 Position)   (Replaces: 3188987)				$ 154.42
6	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
6	3169302		Thermostat				$ 193.75
7	3169457		Light, Indicator (surface Unit On (includes No.12))		Appelez-nous	-
7	314031		Light, Indicator (oven On)				$ 62.88
8	WP3196231		Knob, Control (5) (inf. & Selector)   (Replaces: 3188721)			Immediately	$ 20.95
9	3188724		Knob, Thermostat		Appelez-nous	-
11	3187332		Rear Cover Control Panel		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (18)   (Replaces: 343641)			Immediately	$ 7.85
12	313101		Lens, Amber (2)		Appelez-nous	-
15	313608		Shield (2)		Appelez-nous	-
15	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
16	3169525		Sleeve, Adaptor		Appelez-nous	-
