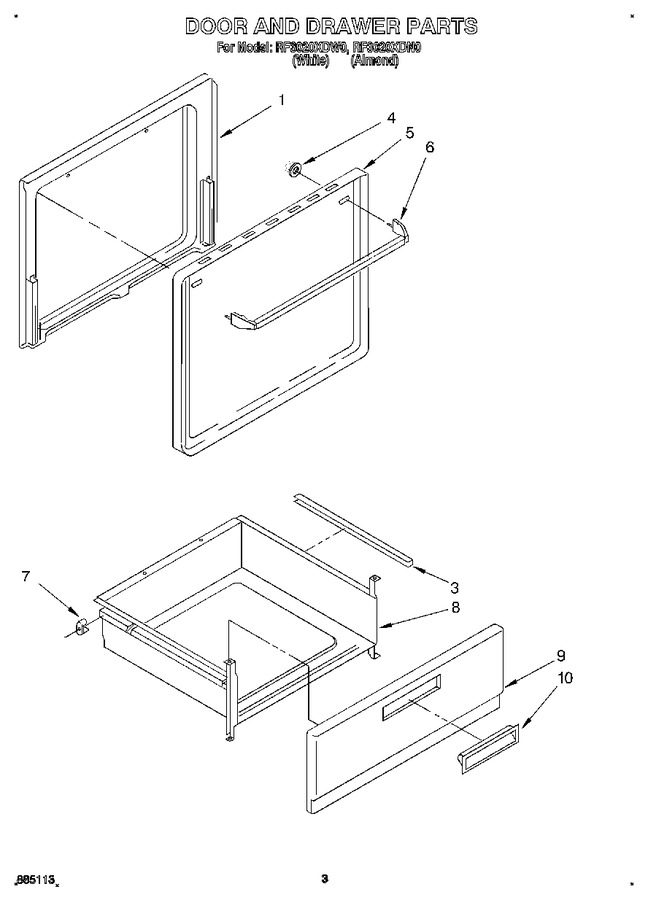

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172221		Liner, Door		Appelez-nous	-
3	309329		Protector, Drawer (2)		Appelez-nous	-
4	WP308499		Palnut (2)   (Replaces: 3169090)				$ 6.95
5	307889		Panel, Door (white)		Appelez-nous	-
5	307897		Panel, Door (almond)		Appelez-nous	-
5	WP488627		Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 7.57
6	3184128		Handle, Oven Door		Appelez-nous	-
7	307980		Glide, Rear (2)		Appelez-nous	-
7	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.87
8	327887		Drawer, Utility		Appelez-nous	-
9	3169430		Panel, Drawer (white)		Appelez-nous	-
9	3169431		Panel, Drawer (almond)		Appelez-nous	-
9	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (5))   (Replaces: 313349)				$ 7.57
10	3150612		Handle, Snap-in (white)		Appelez-nous	-
10	3150613		Handle, Snap-in (almond)		Appelez-nous	-
