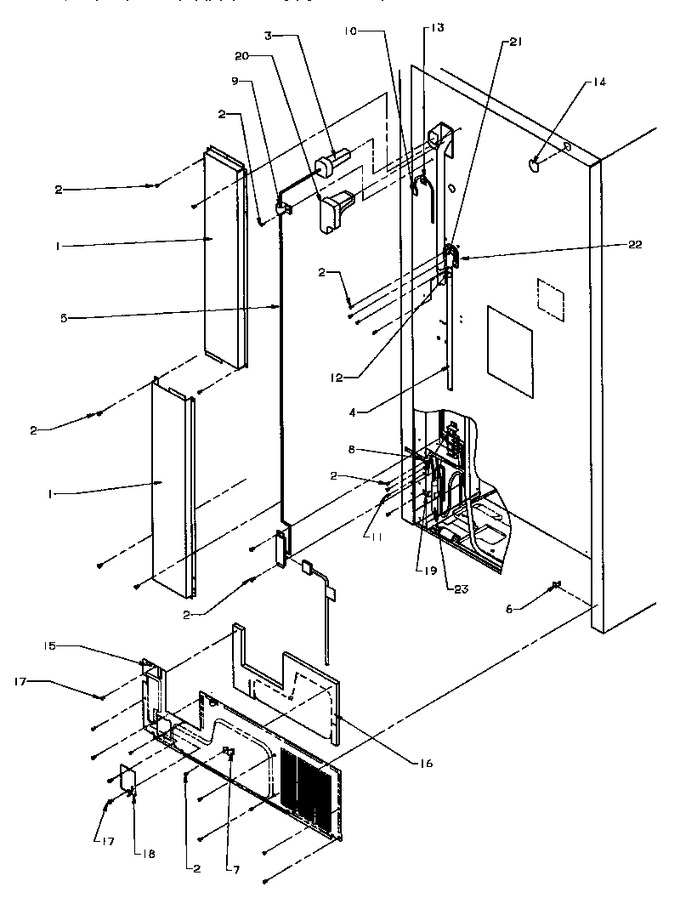

01 - Cabinet Back
02 - Cabinet Bottom
03 - Cabinet Shelving
04 - Compressor Compartment
05 - Control Panel
06 - Divider Block
07 - Evap Area
08 - Fz Door
09 - Ref Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10442202 | Cover, Heat Exch. |
|
- | |||||
| 2 | M0227217 | Screw, Sm |
|
- | |||||
| 3 | 10699301 | Grommet |
|
- | |||||
| 4 | 10908101 | Tube, Drain |
|
- | |||||
| 5 | 10541704 | Harness, Cabinet |
|
- | |||||
| 6 | B5720303 | Clip |
|
- | |||||
| 7 | 10547101 | Clip, Tube |
|
- | |||||
| 8 | M0103904 | Clamp, Speed |
|
- | |||||
| 10 | 10916501 | Cord, Power |
|
- | |||||
| 11 | M0232317 | Screw |
|
- | |||||
| 12 | B8372901 | Clamp |
|
- | |||||
| 13 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 8.17 | |||||
| 14 | 10544301 | Plug, Im Tunnel |
|
- | |||||
| 15 | 10467912 | Back, Mach Comp |
|
- | |||||
| 16 | 10584601 | Insulation, Mach Comp Bk |
|
- | |||||
| 17 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 18 | 10541403 | Cover, Water Valve |
|
- | |||||
| 19 | 10547001 | Clip, Drier |
|
- | |||||
| 20 | 10428001 | Plug, Ht Exch V |
|
- | |||||
| 21 | 10163201 | Elbow Drain Tube |
|
- | |||||
| 22 | A3132301 | Gasket |
|
- | |||||
| 23 | 4007A | Drier (Replaces: B2150503) |
|
Immediately | $ 15.05 |
