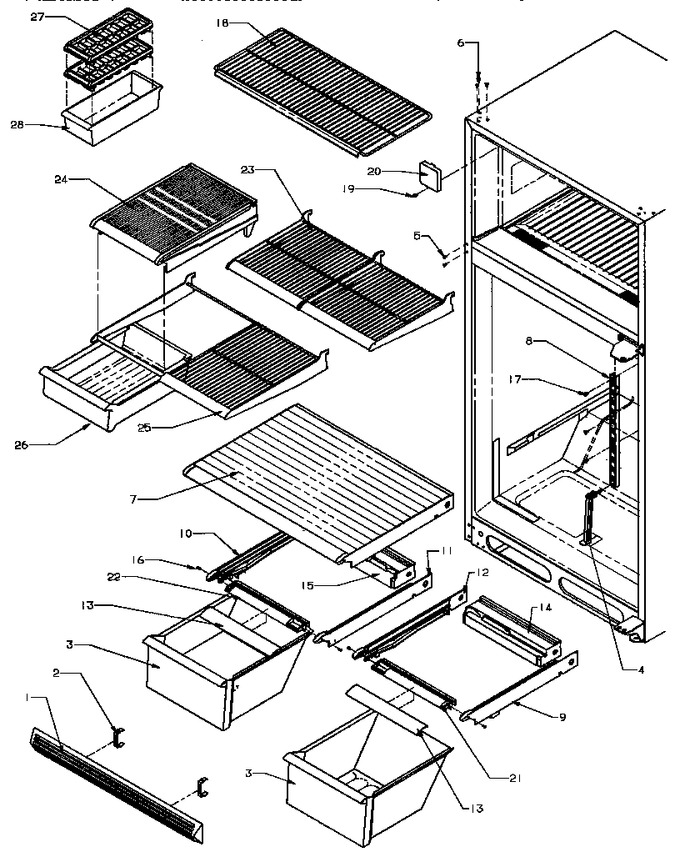

03 - Cabinet Shelving
04 - Compressor Compartment
05 - Control Panel
06 - Divider Block
07 - Evap Area
08 - Fz Door
09 - Ref Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474901 | Grille, Toe (18) |
|
- | |||||
| 2 | 10551501 | Clip-toe Grille |
|
- | |||||
| 3 | 10430214 | Pan, Crisper |
|
- | |||||
| 4 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 5 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 6 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 7 | 10488502 | Top, Crisper |
|
- | |||||
| 8 | D7599105 | Ladder, Side |
|
- | |||||
| 9 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 10 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 11 | 10432803 | Rail, Ctr. Crisper |
|
- | |||||
| 12 | 10432804 | Rail, Ctr. Crisper |
|
- | |||||
| 13 | 10688020 | Extr, Crisper Front |
|
- | |||||
| 14 | 10433805 | Rail, Crisper Back |
|
- | |||||
| 15 | 10435605 | Rail, Crisper Back |
|
- | |||||
| 16 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 17 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 18 | Y10440001 | Shelf, Wire Frz. (18) |
|
- | |||||
| 19 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 20 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 21 | 10687701 | Rail, Crisper Fr0nt(r) |
|
- | |||||
| 22 | 10687702 | Rail, Crisper Front(l) |
|
- | |||||
| 23 | 10440104 | Shelf, Cantilever Wire |
|
- | |||||
| NI | 10698512 | Ass`y, Crisper Frame |
|
- |
