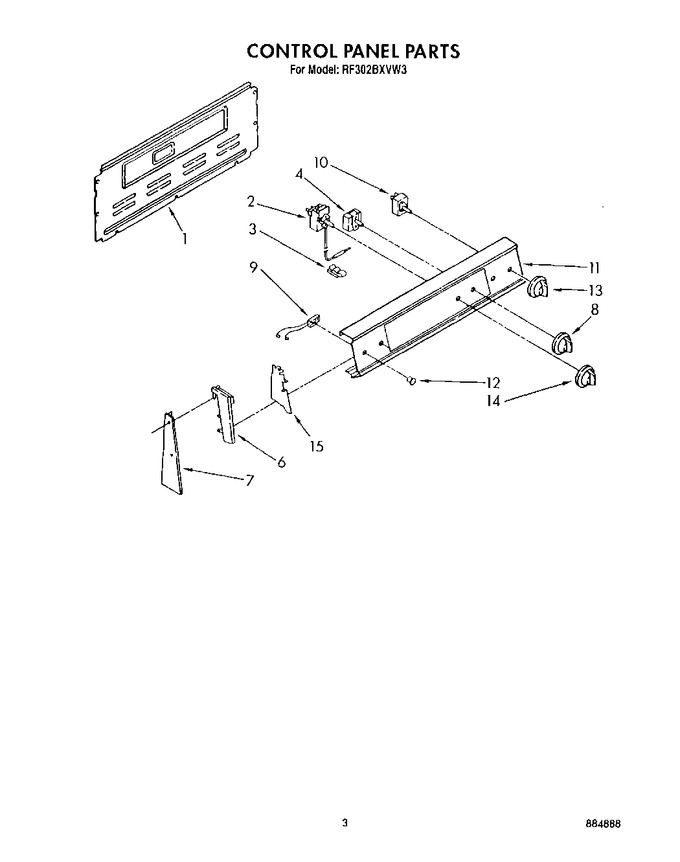

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
1	313195		Cover, Rear		Appelez-nous	-
2	WP313808		Screw (2)   (Replaces: 311932)				$ 7.60
2	661150		Thermostat, Oven		Appelez-nous	-
2	310864		(alt.)		Appelez-nous	-
2	311498		(alt.)		Appelez-nous	-
3	313570		Clamp, Tube		Appelez-nous	-
4	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
4	3150430		Switch, Selector				$ 66.71
6	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
6	313231		End Cap L.h.		Appelez-nous	-
6	313230		End Cap R.h.		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
7	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
7	313190		End Trim L.h.		Appelez-nous	-
7	313191		End Trim R.h.		Appelez-nous	-
8	3149984		Knob, Selector		Appelez-nous	-
9	313102		Light, Indicator (surface Unit (2))				$ 66.48
9	314031		Light, Indicator (oven On (includes No.22))				$ 62.88
10	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 52.39
10	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 52.39
10	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
11	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
11	313375		Panel, Control (white)		Appelez-nous	-
11	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
11	313377		Panel, Control (gold)		Appelez-nous	-
11	313376		Panel, Control (almond)		Appelez-nous	-
12	313101		Lens, Amber (3)		Appelez-nous	-
13	WP3149983		Knob, (4) Infinite Switch   (Replaces: 3149983)				$ 23.23
14	3149987		Knob, Temperature				$ 25.12
15	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
15	313608		Shield (2)		Appelez-nous	-
	LIT3147389		Instructions, Installation		Appelez-nous	-
	LIT3149507		Book, Cooking		Appelez-nous	-
	LIT3150559		Wiring Diagram		Appelez-nous	-
	LIT3150562		Guide, Use & Care		Appelez-nous	-
	LIT884888		List, Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
