02 - Cooktop


03 - Control Panel , Literature


04 - Door And Drawer


05 - Oven (1)


06 - Oven (2) , Optional


07 - Wiring Harness

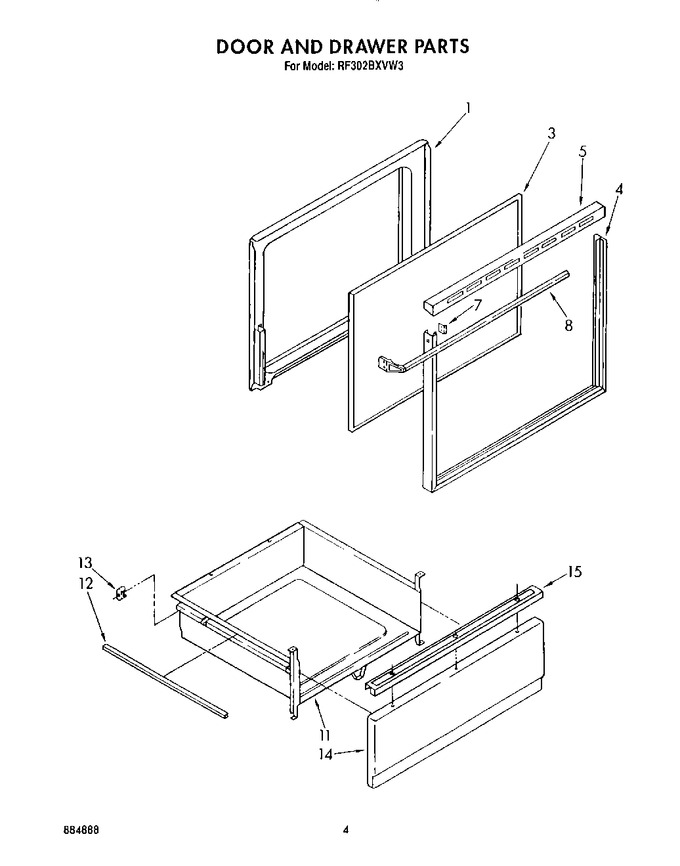

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172221		Liner, Door		Appelez-nous	-
1	307748		Screw (3)		Appelez-nous	-
1	3149333		Screw (2)				$ 5.33
3	3148186		Panel, Door (black Glass)		Appelez-nous	-
4	WP355515		Screw (4)   (Replaces: 355515)				$ 7.67
4	3148235		Frame, Panel		Appelez-nous	-
5	3148223		Top, Door		Appelez-nous	-
7	3148282		Clip, Handle (2)				$ 8.69
8	3148228		Handle, Door		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	307980		Glide, Rear (2)		Appelez-nous	-
13	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
14	307935		Panel Drawer (white)		Appelez-nous	-
14	307938		Panel, Drawer (gold)		Appelez-nous	-
14	307939		Panel, Drawer (almond)		Appelez-nous	-
14	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 10.58
15	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.57
15	313337		Handle, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
