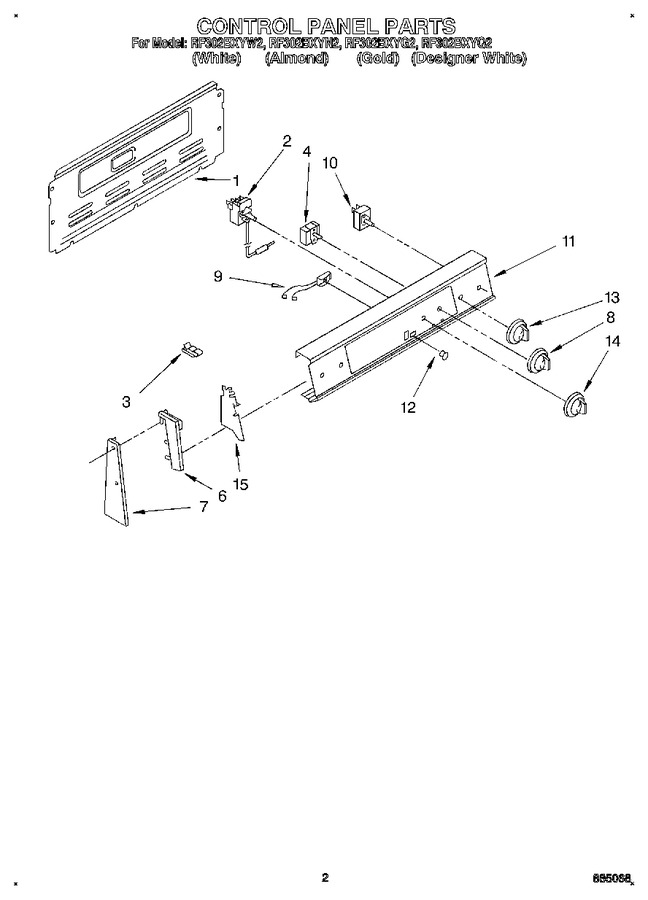

1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
1	3187332		Cover, Rear		Appelez-nous	-
2	WP313808		Screw (2)   (Replaces: 311932)				$ 7.60
2	661150		Thermostat, Oven		Appelez-nous	-
2	310864		(alt.)		Appelez-nous	-
2	311498		(alt.)		Appelez-nous	-
3	313570		Clamp, Tube		Appelez-nous	-
4	3150430		Switch, Selector				$ 66.71
4	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
6	3150441		End Cap R.h.		Appelez-nous	-
6	313231		End Cap Designer White Mdl		Appelez-nous	-
6	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
6	3150442		End Cap L.h.		Appelez-nous	-
6	313230		End Cap Designer White Mdl		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
7	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
7	313190		End Trim L.h.		Appelez-nous	-
7	313191		End Trim R.h.		Appelez-nous	-
8	3183109		Knob, Selector		Appelez-nous	-
8	3183110		Designer White Mdl		Appelez-nous	-
9	3150662		Light, Indicator (includes No. 12) (surface Unit On)		Appelez-nous	-
9	314031		Light, Indicator (includes No. 12) (oven Unit On)				$ 62.88
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 52.39
10	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 52.39
11	3183829		Panel, Control		Appelez-nous	-
11	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
11	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
11	3183830		Designer White Mdl		Appelez-nous	-
12	313101		Lens, Amber (2)		Appelez-nous	-
13	3183117		Designer White Mdl				$ 24.34
13	3183118		Knob, (4) (infinite Switch)				$ 23.04
14	3183107		Designer White Mdl		Appelez-nous	-
14	3183106		Knob, Temperature		Appelez-nous	-
15	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
15	313608		Shield (2)		Appelez-nous	-
